Sinotruk Six Seats Water Tanker Fire Truck Pump Flow 60L/S Aluminum Water Tank 5684L
Sinotruk Six Seats Water Tanker Fire Truck Pump Flow 60L/S Aluminum Water Tank 5684L

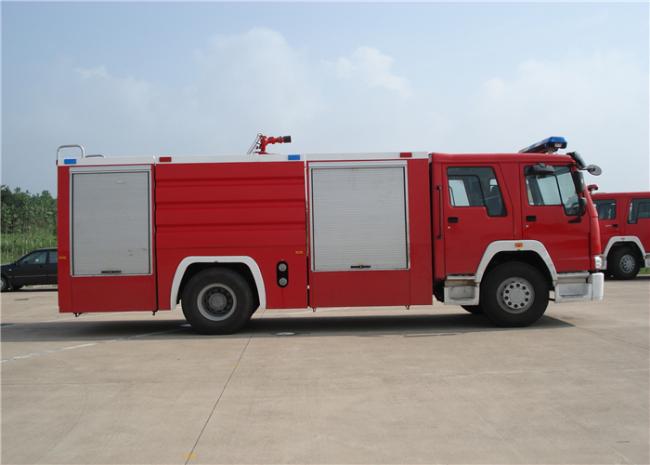

The SG60 six seats water tanker fire truck is adapted from Sinotruk Howo chassis, 4x2 driving with lengthen cabin. Rated power of the original engine is 206kw. The water tanker fire vehicle equipped with HALE pump which flow 60L/s and local manul control fire monitor, carries 5684kg water. It's suitable for public security fire brigade, petrochemical enterprise, port, dock and other professional fire bridage in large and medium-sized city.
Chassis
| Manufacturer | Sino howo |
| Model | ZZ5207M4617D5 |
| Drive type | 4x2 |
| Cab | Flattop four-door lengthen |
| Wheelbase | 4600mm |
| Chassis net weight | 7230kg |
| Max. load | 20490Kg |
| Max. speed | 90km/h |
| Min. turning diameter | ＜18.6m |
| Engine type | Inline six-cylinder, four-stroke, water-cooling, inter-cooling engine |
| Model | D10.28-40 |
| Max. power | 206Kw/1900r/min |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 9JS119 |
| Tyre | 12.00—20 |
Fire pump
| PUMP Manufacturer | HALE |
| Model | 50FB-U60-U ordinary pressure fire pump |
| Pressure/ Flow | 1.0MPa/60L/S |
| Primer type | Electric primer pump |
| Max. vacuum degree | ＞85 kPa |
| Priming time | ≤50s |
| Priming depth | 7 m |
Pipeline
| Outlet pipeline |
4×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet |
1×DN150 outside inlet 1×DN150 valve |
| Monitor pipeline |
1×DN100 monitor pipeline 1×DN100 butterfly valve |
| Residual water outlet | Water cock |
| Cooling water pipeline | The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline. |
Pump drive system
| Model | YTQ600F sandwich type |
| Manufacturer | YANGZHONG |
| Transmission shaft | High balance precision |
Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate.
Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.
