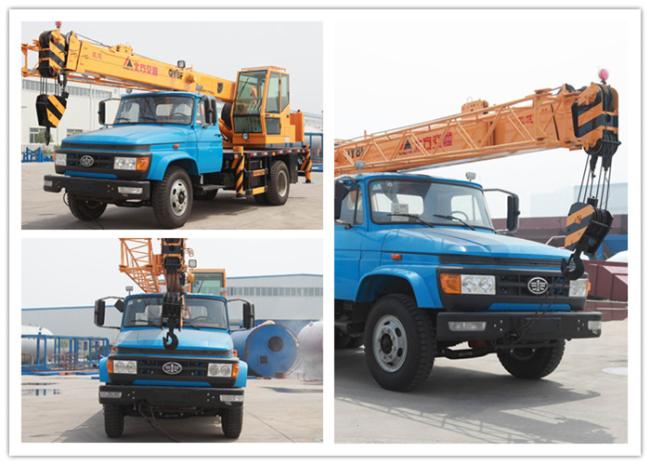

Multifunction 2500r/Min Electric Truck Bed Mounted Crane with Main Boom & Vice Boom
Multifunction 2500r/Min Electric Truck Bed Mounted Crane with Main Boom & Vice Boom Max. Grade ability 30%
One. Working Condition
1,Altitude: 0-4500m
Two. Main Parameters
| Items | Unit | Value | |
| Working Performance Parameters | Max. Rated lifting weight | kg | 8000 |
| Max. Lifting force of the basic boom | kn.m | 245 | |
| Max. Lifting force of the longest main boom | kn.m | 108 | |
| Max. Height of the basic boom | m | 7.95 | |
| Max. Height of the main boom | m | 17.95 | |
| Max. Height of the vice boom | m | 23.7 | |
| Max. Speed of the single rope | m/min | 120 | |
| Working Speed | Extension time of the lift boom | s | 30 |
| Lifting time of the lift boom | s | 25 | |
| Turning speed | r/min | 0～2.5 | |
| Traveling Parameters | Max. Traveling speed | km/h | 74 |
| Max. Grade ability | % | 30 | |
| Min. Turning radius | m | 8.2 | |
| Min. Ground clearance | m | 0.265 | |
| The whole weight | kg | 11400 | |
|
Dimension Parameters |
External dimension(length×width×height) | mm | 8480×2400×3110 |
| Vertical span of outrigger | m | 3.86 | |
| Horizontal span of outrigger | m | 4.2 | |
| Length of main boom | m | 7～17.25 | |
| Length of vice boom | m | 6 | |
| Elevation of main boom | ° | -2～75 | |
1. FAW CA5115JQZ
2. Main boom assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Windlass assembly
6. Slewing system
7. Electric system
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
