Max Torque 1050nm Truck Mounted Crane Main Boom Length 10.2 - 32.1m

Price Negotiable

Price: USD

MOQ: 1

Delivery Time: 3months

Brand: Jiefang

Product Description

Length of main boom 10.2~32.1m 25T FAW Truck Mounted Hydraulic Crane Extension time of the lifting boom 115s

Working Range

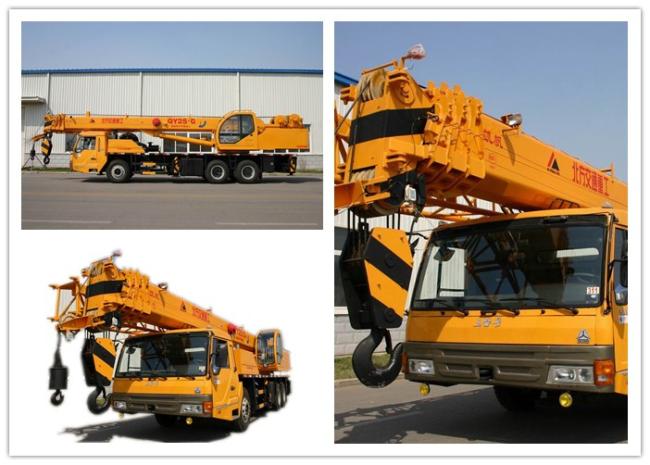

“KAI FAN” Brand KFM5306JQZ25G(QY25G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 25t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.

Working Condition

1,Allowed working condition: solid, stable land, the vehicle should be horizontal

Main Parameters

Items		Unit	Value
Working Performance Parameters	Max. Rated lifting weight	kg	25000
	Max. Lifting force of the basic boom	kn.m	875
	Max. Height of the main boom	m	32.45
	Max. Height of the vice boom	m	40.14
	Max. Speed of the single rope	m/min	115
Working Speed	Extension time of the lifting boom	s	115
	Lifting time of the lift boom	s	80
	Turning speed	r/min	0~2.4
Traveling Parameters	Max. Traveling speed	km/h	70
	Max. Grade ability	%	32
	Min. Turning diameter	m	20
	Min. Ground clearance	m	0.265
	Approaching angle	°	16
	Departure angle	°	11
Weight Parameters	The whole weight of full load	kg	30000
	Load of the front axle	kg	7000
	Load of the middle-rear axle	kg	23000
	The whole weight	kg	29870
Dimension Parameters	External dimension(length×width×height)	mm	12630×2600×3485
	Vertical span of outrigger	m	5.2
	Horizontal span of outrigger	m	5.9
	Length of main boom	m	10.2~32.1
