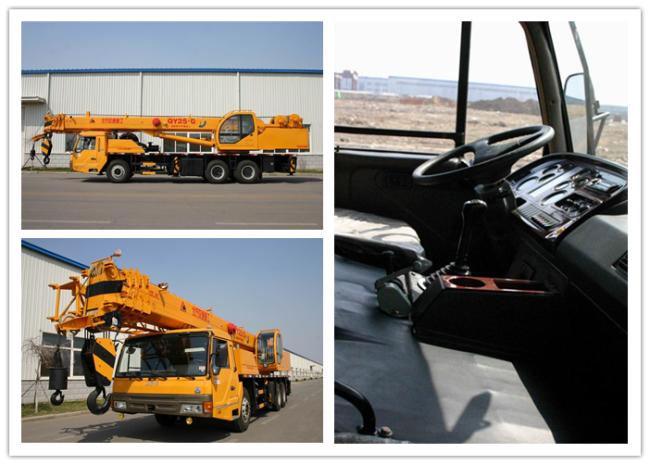

2500r / Min 25000kg Lifting Weight Hydraulic Truck Bed Crane with Moon Shap Cabin
Rotate Speed 2500r / Min 25000kg Lifting Weight Hydraulic Truck Bed Crane with Moon Shap Cabin
One: Working Condition
1,Altitude: 0-4500m
2,Temperature: -25℃--+45℃
3,Allowed working condition: solid, stable land, the vehicle should be horizontal
TWO: Main Parameters
| Items | Unit | Value | |
| Working Performance Parameters | Max. Rated lifting weight | kg | 25000 |
| Max. Lifting force of the basic boom | kn.m | 875 | |
| Max. Height of the main boom | m | 32.45 | |
| Max. Height of the vice boom | m | 40.14 | |
| Max. Speed of the single rope | m/min | 115 | |
| Working Speed | Extension time of the lifting boom | s | 115 |
| Lifting time of the lift boom | s | 80 | |
| Turning speed | r/min | 0~2.4 | |
| Traveling Parameters | Max. Traveling speed | km/h | 70 |
| Max. Grade ability | % | 32 | |
| Min. Turning diameter | m | 20 | |
| Min. Ground clearance | m | 0.265 | |
| Approaching angle | ° | 16 | |
| Departure angle | ° | 11 | |
|
Dimension Parameters |
External dimension(length×width×height) | mm | 12630×2600×3485 |
| Vertical span of outrigger | m | 5.2 | |
| Horizontal span of outrigger | m | 5.9 | |
| Length of main boom | m | 10.2~32.1 | |
| Length of vice boom | m | 8.1 | |
| Elevation of main boom | ° | -1~80 | |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
