Telescopic Fully Hydraulic Truck Crane With 110s Lift Boom Extension Time
Price:
USD
MOQ:
1
Delivery Time:
3months
Brand:
KaiFan
Product Description
Extension time of the lift boom 110s 25T Truck Mounted Crane Fully Hydraulic Telescopic Crane
I. Equipments
1. WUYUE TAZ5323J
2. Main boom assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Windlass assembly
6. Slewing system
7. Electric system
8. Hydraulic system
9. Outrigger

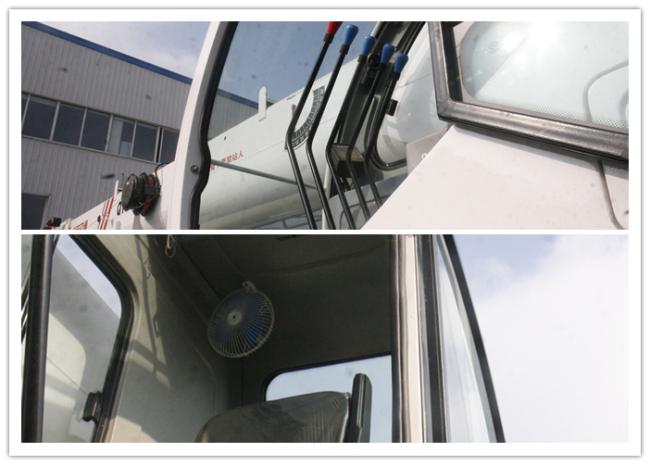

10. Superstructure control system
11. Chassis control system
II. Condition
1,Altitude: 0-4500m
2,Temperature: -25℃--+45℃
3,Allowed working condition: solid, stable land, the vehicle should be horizontal
4,Wind force: ≤6 degree
III. Parameters
| Items | Unit | Value | |
| Working Speed | Extension time of the lift boom | s | 110 |
| Lifting time of the lift boom | s | 60 | |
| Turning speed | r/min | 0～2 | |
| Weight Parameters | The whole weight | kg | 31670 |
| Load of the front axle | kg | 6850 | |
| Load of the rear axle (duel axle) | kg | 24820 | |
| Traveling Parameters | Max. Traveling speed | km/h | 70 |
| Max. Grade ability | % | 30 | |
| Min. Turning radius | m | 11 | |
| Min. Ground clearance | m | 0.27 | |
| Approaching angle | ° | 16 | |
| Departure angle | ° | 11 | |
|
Dimension Parameters |
External dimension(length×width×height) | mm | 12790×2500×3460 |
| Vertical span of outrigger | m | 5.35 | |
| Horizontal span of outrigger | m | 6.1 | |
| Length of main boom | m | 10.3~39.5 | |
| Length of vice boom | m | 8.3 | |
| Elevation of boom | ° | -2~80 | |
| Chassis | Model | — | TAZ5323J |
| Engine model | — | WP10.270 | |
| Rated power/speed | kW/(r/min) | 199/2200 | |
| Max. Torque/rotate speed | N.m/(r/min) | 1100/1200-1600 | |
