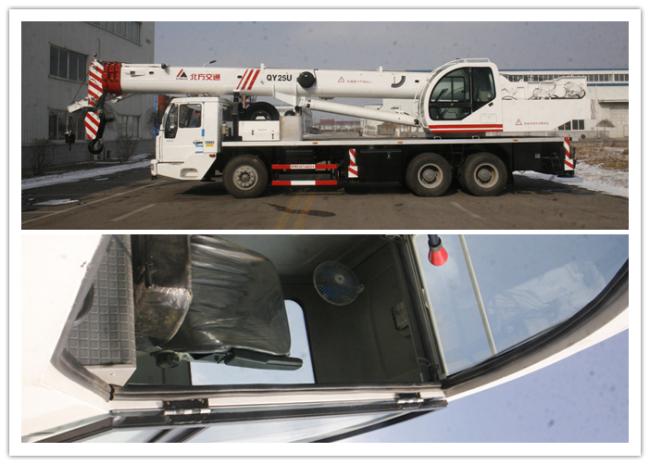

199kw Hydraulic Truck Crane 25t 70km / H With 6.1m Outrigger Horizontal Span
Price:
USD
MOQ:
1
Delivery Time:
3months
Brand:
KaiFan
Product Description
Extension time of the lift boom 110s 25T Truck Mounted Crane Horizontal span of outrigger 6.1m
I. The working condition of the truck
1,Allowed working condition: solid, stable land, the vehicle should be horizontal
2,Wind force: ≤6 degree
II. Main Parameters of the truck
| Items | Unit | Value | |
|
Working Performance Parameters |
Max. Rated lifting weight | kg | 25000 |
| Max. Lifting force of the basic boom | kn.m | 970 | |
| Max. Lifting force of the longest main boom | kn.m | 470 | |
| Max. Height of the main boom | m | 40 | |
| Max. Height of the vice boom | m | 48.2 | |
| Max. Speed of the single rope (the second stage) | m/min | 120 | |
| Traveling Parameters | Max. Traveling speed | km/h | 70 |
| Max. Grade ability | % | 30 | |
| Min. Turning radius | m | 11 | |
| Min. Ground clearance | m | 0.27 | |
| Approaching angle | ° | 16 | |
| Departure angle | ° | 11 | |
|
Dimension Parameters |
External dimension(length×width×height) | mm | 12790×2500×3460 |
| Vertical span of outrigger | m | 5.35 | |
| Horizontal span of outrigger | m | 6.1 | |
| Length of main boom | m | 10.3~39.5 | |
| Length of vice boom | m | 8.3 | |
| Elevation of boom | ° | -2~80 | |
III. Standard Equipments of the truck
1. Electric system
3. Outrigger
4. Superstructure control system
5. Chassis control system
6. Tool box
