10 × 4 Drive VOLVO Road Wrecker Truck External Dimension 11342 × 2500 × 3710
Price:
USD
MOQ:
1
Delivery Time:
3months
Brand:
Young da
Product Description
10×4 drive VOLVO Road Wrecker External dimension 11342×2500×3710 315/80R22.5 Tire size
|
Vehicle Parameters |
External dimension | mm | 11342×2500×3710 |
| Chassis model | FM440 104RB | ||
| Drive | 10×4 | ||
| Axle base | mm | 1995+2805+1400+1370 | |
| The whole weight of empty load | kg | 38055 | |
| Load of front axle of empty load | kg | 16885 | |
| Load of rear axle of empty load | kg | 21170 | |
| The whole weight of full load | kg | 54000 | |
| Load of front axle of full load | kg | 9000 | |
| Load of rear axle of full load | kg | 10000/13000 | |
| Wheel base (front/rear axle) | mm | 2029/1875 | |
| Front suspension | mm | 1362 | |
| Rear suspension | mm | 1750 | |
| Approach angle | º | 16.6 | |
| Departure angle | º | 20 | |
| Min. Turning diameter | m | 27.2 | |
| Min. Ground clearance | mm | 306 | |
| Max. Speed | km/h | 90 | |
| Max. Grade ability | % | 25 | |
| Gas consumption per one hundred miles(diesel oil) | L | 42.9 | |
| Engine model | - | D13 | |
| Engine emission | L | 12.8 | |
| Rated power | kw/r/min | 440/324/1400～1800 | |
| Torque | n·m/r/min | 2200/1050～1400 | |
| Fuel type | Diesel | ||
| Standard of emission | EN III | ||
| Tire size | 315/80R22.5 | ||
| Persons | 2 |

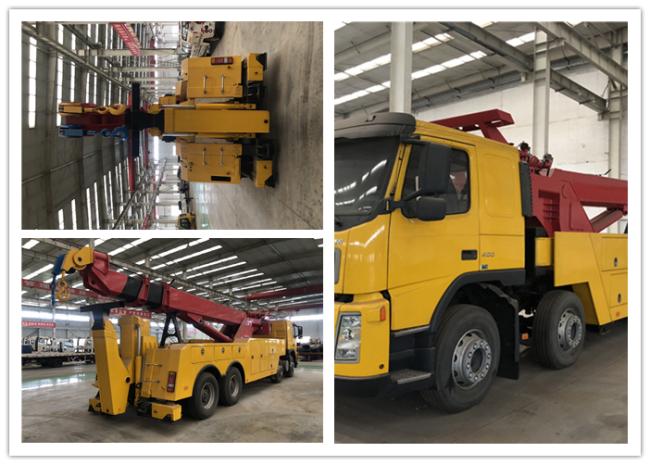

KFM5540TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind.
| Items | Unit | Value | |
| Lifting Structure | Rated Lifting weight | kg | 15815 |
| Max. Lifting weight of original place | kg | 35000 | |
| Max. Lifting weight of full extension boom | kg | 12500 | |
| Rated towing weight | kg | 54000 | |
| Max. Designed towing weight | kg | 80000 | |
| Effective length of boom | m | 3670 | |
| Extension traveling of boom | m | 1850 | |
| Folding angle of boom | ° | 90 | |
| Under lift Structure | Max. Rated hanging weight | kg | 40000 |
| The height from hook to the ground | mm | 13500 | |
| Max. Extension traveling of lifting boom | mm | 6000 | |
| Rotation angle | ° | 360 | |
| Numbers of winch | piece | 2 | |
