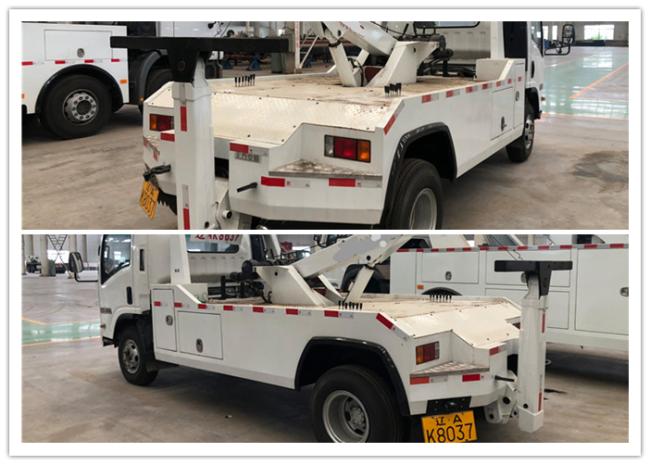

Light - Duty Road Wrecker Truck 4000kg Max Pulling Power Temperature - 35 - 45 ℃
Temperature: -35℃--+45℃ Light-duty N Series (ISUZU) Road Wrecker Max. Pulling power of winch 4000kg
a,Working Condition
1,Altitude: 0-4500m
2,Temperature: -35℃--+45℃
3,Relative humidity: 80%
4,Wind force: ≤8degree
b,Main Parameters
|
|
External dimension | mm | 5830×1980×2425 |
| Chassis model | I NKR77PLPACJAY | ||
| Axle base | mm | 3815 | |
| Drive | 4×2 | ||
| The whole weight of empty load | kg | 4075 | |
| Load of front axle of empty load | kg | 2000 | |
| Load of rear axle of empty load | kg | 2075 | |
| The whole weight of full load | kg | 7205 | |
| Load of front axle of full load | kg | 2500 | |
| Load of rear axle of full load | kg | 4705 | |
| Wheel base (front/rear axle) | mm | 1504/1425 | |
| Front suspension | mm | 1015 | |
| Rear suspension | mm | 790 | |
| Approach angle | º | 24 | |
| Departure angle | º | 26 | |
| Min. Turning diameter | m | ≤15.2 | |
| Max. Speed | km/h | 100 | |
| Grade ability | % | 30 | |
| Min. Ground clearance | mm | 190 | |
| Engine model | - | 4KH1-TC | |
| Rated power | kw/r/min | 96/3400 | |
| Max. Torque | n·m/r/min | 280/1700 | |
| Engine emission | L | 2.999 | |
| Fuel type |
Diesel |
||
| Standard of emission |
|
||
| Tire size | 7.00-16(option7.50-15,7.50R15,7.00R16) | ||
| Persons | 2 | ||
c,Standard Equipments
1. ISUZU NKR77LLPACJAY
2. Main boom structure assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Control structure assembly
6. Winch assembly (include winch clutch, impaction device)
7. Steel body assembly
8. Tool box assembly
9. Light stands assembly
10. Alarm device
11. Hydraulic system
12. Hydraulic system over voltage protection device
13. Electric system
14. PTO Warner
15. Combination lamps
16. Steel wire rope (including hook) (25m/pcs)
17. Standard spare tire
18. L wheel lift
19. Bind belt
20. Vulnerable parts attachment
