8x4 Drive ISO Certified Road Wrecker Truck Diesel Tank 85km/H Max Speed
Price:
USD
MOQ:
1 SET
Delivery Time:
30 working days
Brand:
YD
Product Description

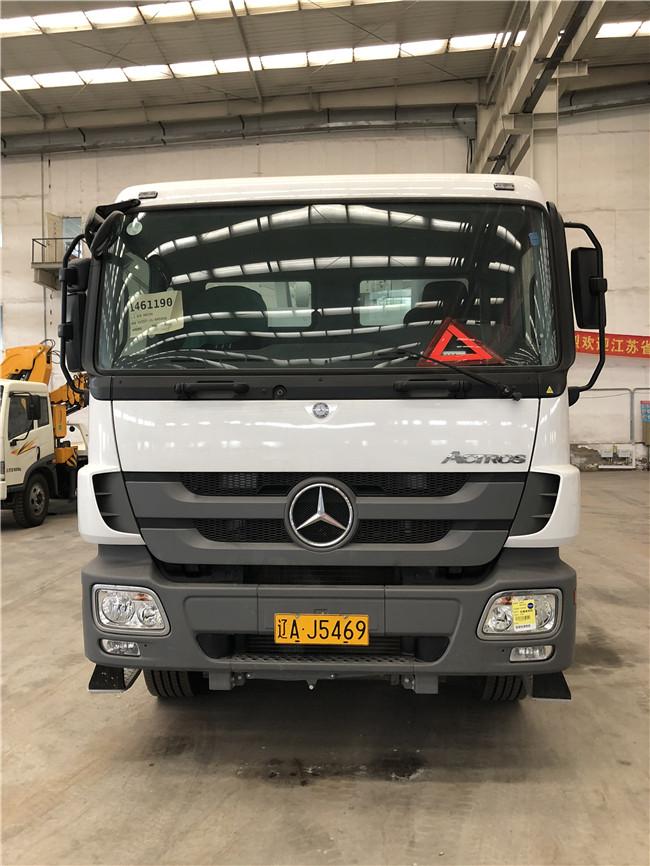

8x4 Drive ISO Certified Road Wrecker Truck Diesel Tank 85km/H Max Speed
1. specification
|
Vehicle Parameters |
External dimension | mm | 10860×2500×3465 |
| Chassis model | Actros4141 | ||
| Axle base | mm | 1700＋4600＋1350 | |
| Drive | 8×4 | ||
| The whole weight of empty load | kg | 27085 | |
| Load of front axle of empty load | kg | 12505 | |
| Load of rear axle of empty load | kg | 14580 | |
| The whole weight of full load | kg | 41000 | |
| Load of front axle of full load | kg | 7500/7500 | |
| Load of rear axle of full load | kg | 26000 | |
| Wheel base (front/rear axle) | mm | 2035/1804 | |
| Front suspension | mm | 1440 | |
| Rear suspension | mm | 1065 | |
| Approach angle | º | 27 | |
| Departure angle | º | 15 | |
| Min. Ground clearance | mm | 345 | |
| Min. Turning diameter | m | ≤25.9 | |
| Max. Grade ability | % | ≥27 | |
| Max. Speed | km/h | 85 | |
| Gas consumption per one hundred miles(diesel oil) (L) | 42 | ||
| Engine model | - | OM501LA.III/17 | |
| Rated power | kw/r/min | 300/1800 | |
| Engine emission | L | 11.946 | |
| Max. Torque | n·m/r/min | 2000/1080 | |
| Fuel type | Diesel | ||
| Standard of emission | EN III | ||
| Tire size | 315/80R22.5 | ||
| Persons | 2 |
2. Standard Equipments
1. BENZ Actros4141
2. Main boom structure assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Control structure assembly
6. Chain wheel and hanging assembly
7. Winch assembly (include winch clutch, impaction device)
8. Steel body assembly
9. Tool box assembly
10. Light stands assembly
11. Alarm device
12. Hydraulic system
13. Hydraulic system over voltage protection device
14. Electric system
15. PTO Warner
16. Combination lamps
17. Hydraulic duel rear outrigger assembly
18. Lifting assembly
19. Y wheel lift
