Hydraulic Control Flatbed Road Wrecker Truck 360 Rotation Angle ISO9001
1.We are professional manufacturers to do the special vehicles ,such as fire truck ,wrecker tow truck, aerial work platform truck, etc .
2.We supply all brands special truck , Faw , Foton, Sinotruck Jac , Jmc , ,Dongfeng all avaliable.
3 Drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
4. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
5 The material of the thermal insulation container could be: Glass fiber reinforced plastic, color steel plate, aluminum alloy, stainless steel
| ITEM | UNIT | DESCRIPTION |

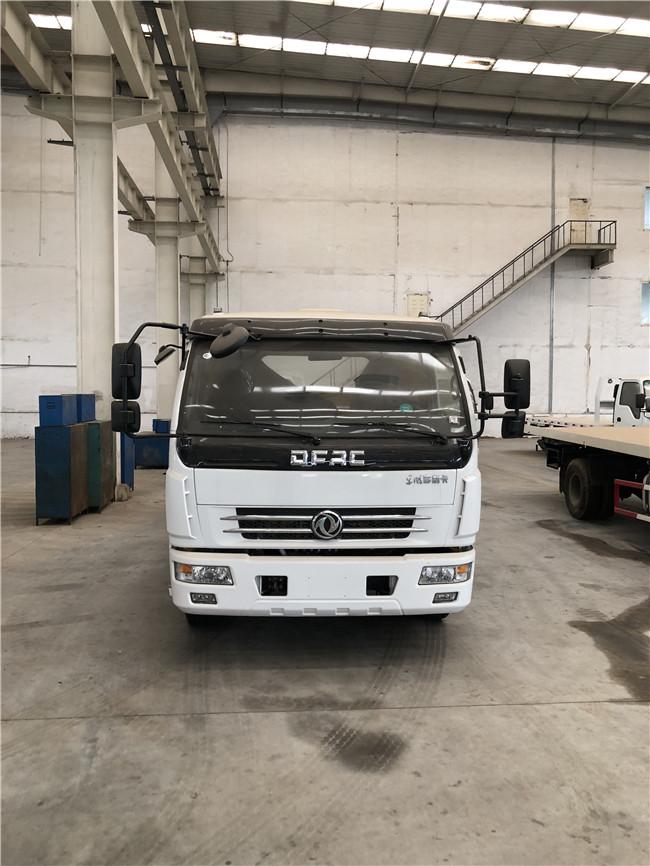

| Vehicle | DONGFENG tow truck wrecker | |
| Overall dimension | mm | 7470×2350×2440 |
| Flatbed dimension | 5550×2300 | |
| Curb weight | kg | Appro×4910 |
| Flatbed loading weight | Appro×4000 | |
| Carriage arm loading weight | Appro×3000 | |
| Wheel base | mm | 3800 |
| Front/Rear overhang | 1210/2460 | |
| Approach/departure angle | ° | 24°/10° |
| Standard configuration | 1) 4 tons winch 1 set | |
| 2) Auxiliary wheel 2pcs | ||
| 3) Rear towing arm assembly 1 set | ||
| 4) Steel wire rope 25m | ||
| 5) Bunding belt 4pcs | ||
| 6) Rear tail lights LED,both sides electronic lights. | ||
| 7) Tool box | ||
| Working Performance | 1. It can tow two cars. | |
| 2. Hydraulic control flatbed and carriage arm,with hydraulic operation lever. | ||
| 3. Winch speed : 8m/min. | ||
| 4. Flatbed working stroke: 2680mm | ||
| 5. Flatbed minimum tilt angle: 10° | ||
| 6. Carriage arm telescopic stroke: 1180mm | ||
| 7. The max effective length of the carriage arm: 1300mm | ||
| Chassis Parameter | ||
| Cabin | Single row cabin,air conditioner,power steering, cabin roof warning light, 3 passangers | |
| Drive type | 4×2,left /right hand dirve | |
| Engine | Brand : DONFGENG CHAOCHAI POWER | |
| Model :CY4102-E3C, 120hp | ||
| Type : diesel, 4 cylinder, turbocharged, intercooled. | ||
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
