2780ml 120kw 4 Cylinders Water Mist Pickup Fire Truck
Price:
Negotiable
MOQ:
1UNIT
Delivery Time:
90days
Brand:
Jindun
Product Description
4 Cylinders Water Mist Mini Fire Truck Original Cab Aluminium Alloy Storage Compartment
The main alarm lamp at the top of the cabin is long type. The fire alarm power is 100w with functions as volume adjustment, FM and public-address. According to the requirements of customer, the vehicle can be equipped with fire monitoring system and image transferring system.
Key component structure and technical performance parameter
| ⑵ Engine | |
| Engine model: | Commins ISF2.8s4161P |
| Engine type: | 4 cylinders, pressuring air intercool, EGR+DOC |
| Max. power rotate speed (rpm): | 3600 |
| Max. torque rotate speed (rpm): | 1800-3000 |
| Max. HP: | 161 |
| Displacement mL: | 2780 |
| Cylinders: | 4 |
| Gears: | 5 |
| Fuel type: | Diesel |
| Emission standard: | China 4 |
| Tyre type: | 245/70R16 |
| (3)Cab | |
| Structure | Original cab |
| Seat | 1＋1+3 |
| Equipment | operation board, siren |

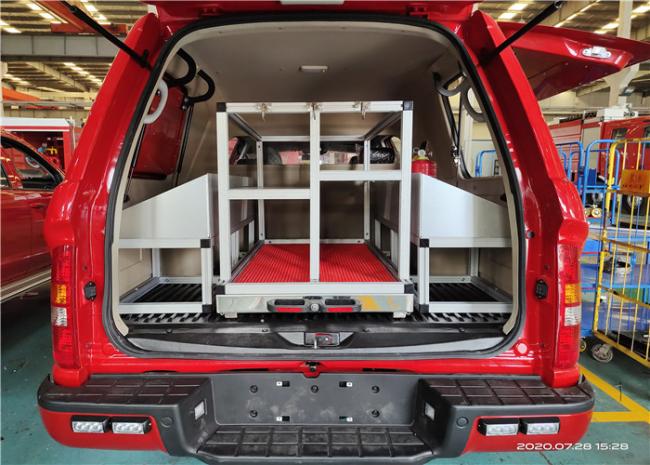

| (4)Storage compartment | |
| Manufacturer | Shanghai Jindun |
| Material | aluminium alloy |
| Structure | The inner frame is made of aluminium alloy, and checkered plate |
| Inner structure | Maximize the space utilization and variability |
| Seal | Mechanical seal |
| Water tank | |
| Steel-made tank capacity | 300L |
| Storage apartment overall | 1500X1500X1050mm |
