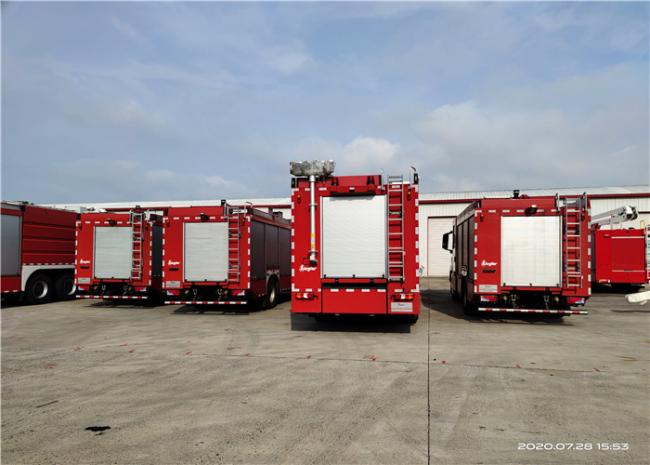

Four Stroke 4×2 Anti Drop 6000L/M Q235A Foam and Water Tanker Fire Truck
Price:
Negotiable
MOQ:
1 UNIT
Delivery Time:
90 days after sign contract
Brand:
Jindun
Product Description
Four Stroke 4×2 Anti Drop 6000L/M Q235A Foam and Water TankerF Fire Truck
Chassis
| Brand | MAN (MADE IN GERMANY) |
| Chassis Model | TGM18.290 4X2 BB |
| Power | 213KW |
| Steering wheel | right hand drive |
| Chassis weight | 5645Kg |
| Full total mass | 17600Kg |
| Drive Type | 4 × 2 |
| Wheelbase | 4425 mm |
| Engine Model | MAN D0836LFL30 |
| Number of cylinders | 6 |
| Type | 4-stroke, water-cooled, four-valve, diesel, turbocharged, intercooled, electronically controlled |
| Engine power | 213/2300 kw/rpm |
| Displacement | 6871mm |
| Emission standard | Euro 4 standard |
| Torque | 1150/1200 ~ 1750 Nm/Rpm |
| Transmission type | ZF 9S-1310 OD manual transmission |
| Number of gears | 9 + 1 |
| Clutch | Monolithic, dry type, with buffer springs, hydraulicPressure booster |
| PTO type | ZF N109 / 10b |
| Dimensions | ≤8500X2500X3500mm |
Equipment room
| Side girder | Structure characteristics: |
| Uses the high quality steel welded together, between the two longitudinal beams, there are several beam connects to the longitudinal beams with equal strength. The side girder connect to installation parts with high strength bolt, ensure the original car girder stability and power equality, improve the service life of the girder, reduced the possibility of the distortion of the installation parts caused by the deformation. | |
| Equipment box and pump room | Material: Q235A steel & aluminum alloy. |
| Structure: Welded, the join-structure,skinned,bottom plate and interior plate adopts the anodized LF2 rust-prevention flat aluminum plate. | |
| The door of equipment box and pump room: Using lightweight high quality aluminum alloy,with shutter,lightweight and reliable,the back door of the pump room adopts flap-up door for shading the weather and preventing falling objects. | |
| Internal structure:Inner frame adopts aluminum lap technology,to farthest improve space utilization and variability, equipment box can be configured all kinds of sliding brackets and the dragging plates, etc.,according to the requirements of customers for convenient accessing. | |
| Pedal plate | Location: At the bottom of the shutter. |
| Material: Steel frame covered by aluminum alloy | |
| decorative pattern plate | |
| Structure: Adopt the gas springs plus shutter fasten, safe and Reliable, each petal plate bearing ≥150Kg. |
Equipment layout principles
- According to combat programming and combat development design equipment integration.
- According to human body engineering principle design all kinds of equipment frames.
- According to using logic and frequency of use place equipment.
- 1-2 action can take any equipment standing on the ground or pedal.
- Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.
