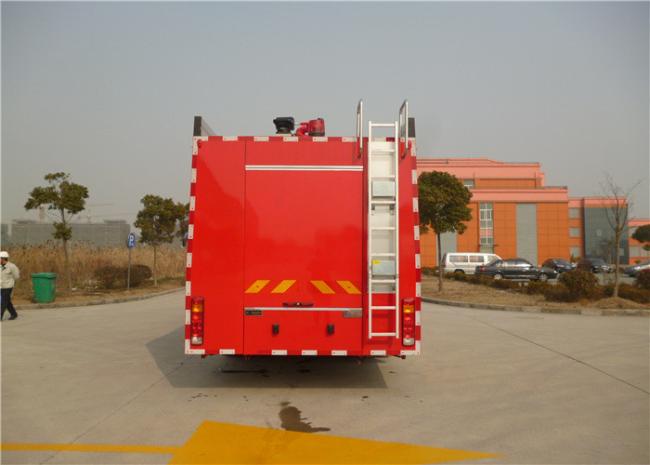

10 bar 4x2 Drive 60L/S Water Tanker Fire Truck Fire Engine 7600kg
10 bar 4x2 Drive 60L/S Water Tanker Fire Truck Fire Engine 7600kg
The water tanker fire truck is consists of fire pump, fire monitor, fire power taker off, water tank. The top of the tank is with manhole , fire water monitor. The fire fighting water truck is also with fire coupling which can pump water from fire hydrant, then transport the water and fire fighter to fire fighting. It also can put out the fire directly by pumping the water from water source or supply water for other fire spray device. The water tanker fire truck is one simple fire truck and a stock fire fighting truck. This water tanker is mainly used for planting, fire fighting, mine dust removal.
Chassis
| Drive type | 4x2 |
| Cab | Flattop four-door lengthen |
| Wheelbase | 4600mm |
| Chassis net weight | 7230kg |
| Max. load | 20490Kg |
| Max. speed | 90km/h |
| Min. turning diameter | ＜18.6m |
| Engine type | Inline six-cylinder, four-stroke, water-cooling, inter-cooling engine |
| Model | D10.28-40 |
| Max. power | 206Kw/1900r/min |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 9JS119 |
| Tyre | 12.00—20 |
Fire pump
| Flow | 60L/s |
| Pressure | 1.0MPa |
| Water diversion | Piston primer pump |
| Max. vacuum degree | ＞85 kPa |
| Priming time | ≤80s |
| Suction depth | 7m |
Pipeline
| Outlet pipeline |
4×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet |
1×DN150 outside inlet 1×DN150 valve |
| Monitor pipeline |
1×DN100 monitor pipeline 1×DN100 butterfly valve |
| Residual water outlet | Water cock |
| Cooling water pipeline | The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline. |
Fire monitor
| Model | PS50 |
| Flow | 3000L/min |
| Pressure | 10bar |
| Range | water≥65m |
| Rotation angle |
Level 360° Pitching —15°~ +90° |
