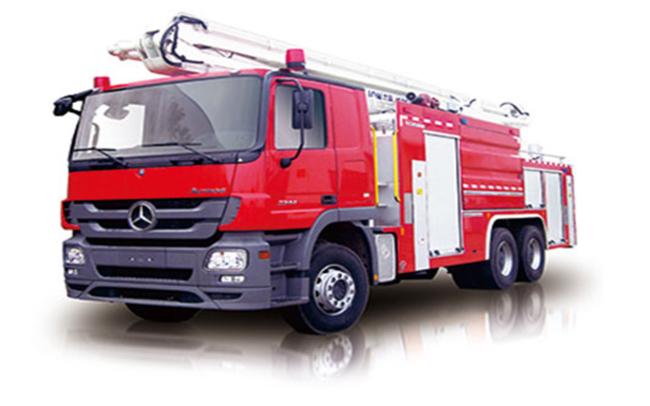

25 Meter Height 6×4 Drive Water Tower Fire Truck with Shock Reducing Rubber
25 Meter Height 6×4 Drive Water Tower Fire Truck with Shock Reducing Rubber
Boom structure
| 3 folding boom, welded with high-strength steel | |
| Max. working height | 25m |
| Max. working radius | 14m |
| Pump flow | 100L/s |
| Boom extending time | ≤60s |
| Outrigger extending time | ≤35s |
| Hydraulic system pressure | 20MPa |
| Max. wind velocity | 12.5m/s |
| Outrigger longitudinal and transverse | 5200×2040mm |
| Allowed working range: Shown as pic1 | |
PIC1 JDX5310JXFJP25 water tower fire truck allowed working range
Fire fighting system/Fire fighting performance
| Spray flow/pressure | 4200L/min @ 1.6MPa |
| Spray range(water/ foam) | ≥70/65m |
| Foam proportioner | 6%(manual adjustment) |
Liquid tank
| Manufacturer | Shanghai Jindun special vehicle equipment Co., Ltd |
| Capacity | Water: 8000kg Foam: 2000kg |
| Material | 304 corrosion resistant plate |
| Structure | Welded frame, shock-reducing rubber |
| Equipment |
2 manhole 2 fluid level gauge 2 drain outlet with stainless steel ball valve 1 outside suction port, 1 inside filling pipe end 4 outside filling pipe end |
Electrical system
Waterway operation panel
At the top of pump room trail.
Alarm lamp and stroboscope lamp
In front of the vehicle roof equipped with TBD035181 long row alarm lamp, LTE595 stroboscope lamp on both side.
Controller
Finnish EPEC2024 imported with original packaging
Remote Control
Italian AUTEC wireless remote controller imported with original packaging, effective working radius 100m.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
