Small-sized light Duty 3500 Litre Foam Tanker Fire Trucks with 30L/S Pump
Small-sized light Duty 3500 Litre Foam Tanker Fire Trucks with 30L/S Pump
JDX5100GXFPM35/B foam fire truck adopts QL11009KARY ISUZU chassis, USA HALE AP32 fire pump, USA AKRON 3430 fire monitor and other fire-fighting equipment. It is usually used by public security fire brigades in large and medium cities, petrochemical companies and airports and other professional fire brigade.The vehicle has the features of a good structure and reasonable layout, easy operation and maintenance.
1,Whole vehicle
1.1 Fire extinguishing agent capacity(L): water:2320,Foam:1065
1.2 Crew member: 3
1.3 PTO Broken Shaft (Pneumatic Control)
2,Crew room
3.1 Structure: Carbon steel skeleton, mask is bonded to LF2 aluminum alloy plate.

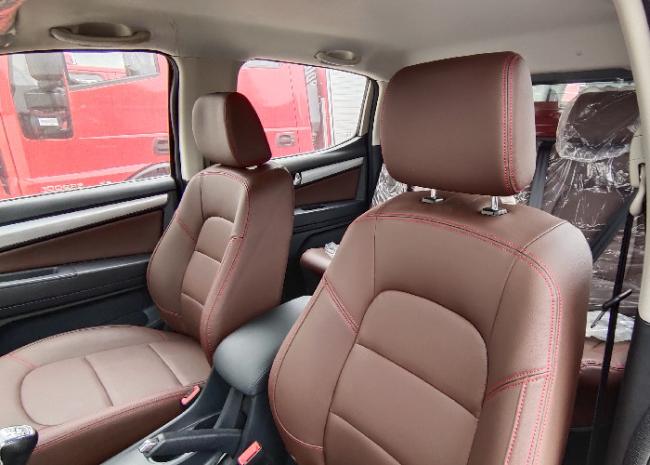

3.2 Seat setting: 3 seats. There are three air breathing apparatus racks at the backrest.
3,Pump and piping system
3.1 Water pump
| Manufacturer | China |
| Model | CB10/30 type |
| Pressure / flow | 1.0MPa / 30L / s |
| Water diverter | |
| Type | Piston vacuum pump |
| Maximum vacuum | ≥85 kPa |
| Suction | 7 m |
| Water diversion time | ≤35s |
| Foam Proportion Mixer Model | PH48 |
3.2 Piping system
| Inlet | There is a Φ100mm suction port at the rear of the pump room. A water inlet with a Φ100mm manual butterfly valve for connection to the water tank. |
| Water injection port | There is one Φ80mm tank water inlet on each side of the pump room. A pump with a DN65 manual ball valve at the rear of the tank is filled into the tank. |
| Water outlet | There is one Φ80mm water outlet with ball valve on each side of the pump room, and one DN80 gun line is set behind the tank. |
| Residual water pipeline | In order to protect the water pump and each ball valve, a residual water ball valve is installed in the pipeline. |
| Cooling water piping | In order to protect the normal operation of the power take-off, additional cooling devices are provided in the pipeline. |
| External suction line | G1 1/2" manual ball valve and KY40 tube interface are used. |
