Double Rows Cabin Fix Seats Bottom Plate 4mm Foam Fire Truck 139kw Power Stainless Steel 304

Vehicle introduction

The PM35/W5 foam fire truck is equipped with fire equipment such as CB10/30 fire pump and water/foam gun (coupling).

1,Whole vehicle

1.1 Fire extinguishing agent capacity: water:2320 L,Foam:1065L.

1.2 Crew member: 3

1.3 PTO Broken Shaft (Pneumatic Control)

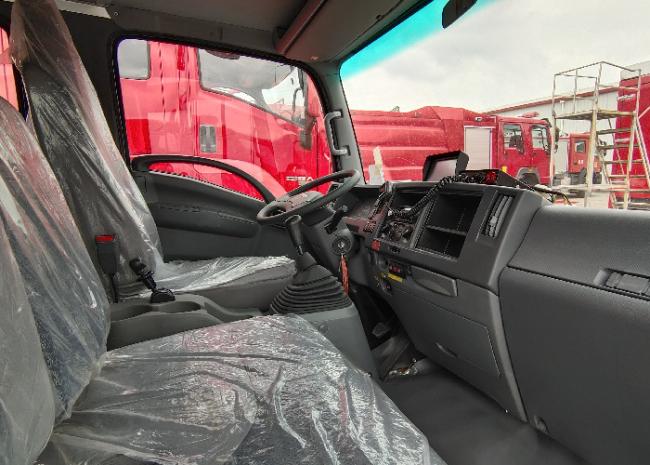

2,Crew room

3.1 Structure: Carbon steel skeleton, mask is bonded to LF2 aluminum alloy plate.

3.2 Seat setting: 3 seats. There are three air breathing apparatus racks at the backrest.

3. Equipment room

3.1 Material: Q235A high quality steel.

3.2 Structure: The welding, lap joint structure, skin, bottom plate and interior panel are all anodized LF2 rust-proof flat aluminum plate.

3.3 Equipment door: Lightweight and high quality aluminum alloy shutter door, light and reliable.

3.4 Internal structure: The inner skeleton C-type rail steel combined with the introduction of the aluminum technology lap joint technology developed by German technology can maximize the space utilization and variability. The structure is beautiful in appearance and convenient to pick and place equipment. A hand lift pump drawing plate is added on the left side of the equipment box, and an aluminum adjustable equipment box is added on the upper part of the right side of the equipment box, and a simple rescue tool can be arranged inside the equipment box.
