3 Seats 1.0Mpa 1800L/Min Fire Equipment Truck 7m Suction Depth

Carry 3 Firefighters Foam Fire Trucks Pressure 1.0Mpa Flow Rate 1800L/Min

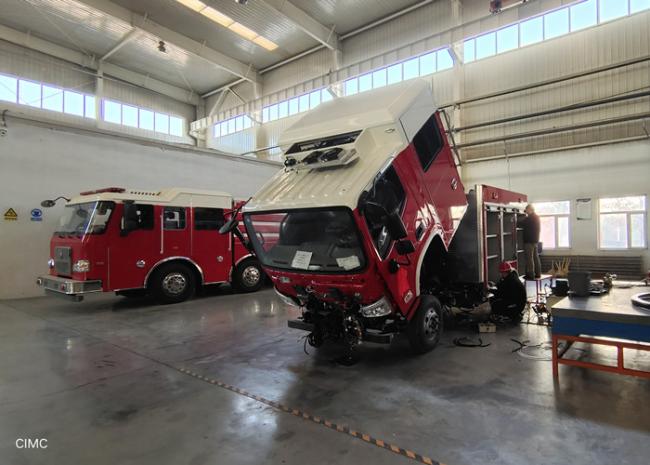

1. Overview

PM20/AT foam fire truck passenger compartment, equipment compartment, tank compartment and pumping room adopt integrated aluminum alloy plate bonding structure design (AT technology), no welding process, no deformation, no stress concentration. The water pump is installed in the rear, which is compact in structure and convenient for operation and maintenance. Aluminum alloy plate-bonding structure technology Independent passenger compartment can carry 3 firefighters, and the crew has an air breathing apparatus seat.

II. Fire extinguishing system:

2.1,Water pump

• Manufacturer: China
• Model: CB10/30
• Pressure/Flow rate: 　　　　 1.0Mpa/1800L/min
• Water diverter type: piston vacuum pump
• Suction depth: 7 m
• Diversion time: ≤35s

2.2,Fire extinguishing system

Pipeline system:

Drainage pipeline: An external suction port of DN100 pump, located at the rear of the car body, is equipped with a DN100 manual butterfly valve, with a special rubber elastic connection devic e at the appropriate part of the pipeline;

Outlet pipeline: There is a DN80 atmospheric outlet on both sides of the body.

Water injection pipeline: There is a DN80 water injection port on both sides of the body, a water injection pipeline controlled by DN50 ball valve from pump to tank, and a rubber connection section in the middle.

Redundant water pipeline: Redundant water cock is installed at the lowest convenient operation position of pipeline and pump, which can quickly remove the residual water in the system when needed.

Cooling pipeline: Additional cooling pipeline is set up to protect the power take-off from running for a long time.

External suction foam line: G1 1/2 "manual ball valve and KY40 interface.
