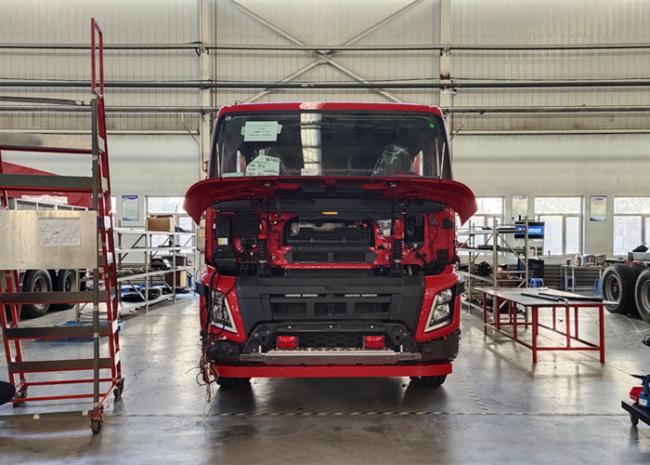

4x2 400L Foam 3 Seats 1.0Mpa Heavy Rescue Fire Truck
DN150 Outside Inlet Water And Foam Fire Trucks DN100 Monitor Pipeline 90km/H
Chassis
| Manufacturer | Sino howo |
| Model | ZZ5207M4617D5 |
| Drive type | 4x2 |
| Cab | Flat top four-door lengthen |
| Wheelbase | 4600mm |
| Chassis net weight | 7230kg |
| Max. load | 20490Kg |
| Max. speed | 90km/h |
| Min. turning diameter | ＜18.6m |
| Engine type | Inline six-cylinder, four-stroke, water-cooling, inter-cooling engine |
| Model | D10.28-40 |
| Max. power | 206Kw/1900r/min |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 9JS119 |
| Tyre | 12.00—20 |
Fire pump
| Manufacturer | Shanghai Xiongzhen |
| Model | CB10/60-XZ ordinary pressure |
| Flow | 60L/s |
| Pressure | 1.0MPa |
| Water diversion | Piston primer pump |
| Max. vacuum degree | ＞85 kPa |
| Priming time | ≤80s |
| Suction depth | 7m |
Pipeline
| Outlet pipeline |
4×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet |
1×DN150 outside inlet 1×DN150 valve |
| Monitor pipeline |
1×DN100 monitor pipeline 1×DN100 butterfly valve |
| Residual water outlet | Water cock |
| Cooling water pipeline | The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline. |
Fire extinguishing system
Pipeline system:
Drainage pipeline: An external suction port of DN100 pump, located at the rear of the car body, is equipped with a DN100 manual butterfly valve, with a special rubber elastic connection devic e at the appropriate part of the pipeline;
Outlet pipeline: There is a DN80 atmospheric outlet on both sides of the body.
Water injection pipeline: There is a DN80 water injection port on both sides of the body, a water injection pipeline controlled by DN50 ball valve from pump to tank, and a rubber connection section in the middle.
Redundant water pipeline: Redundant water cock is installed at the lowest convenient operation position of pipeline and pump, which can quickly remove the residual water in the system when needed.
Cooling pipeline: Additional cooling pipeline is set up to protect the power take-off from running for a long time.
External suction foam line: G1 1/2 "manual ball valve and KY40 interface.
