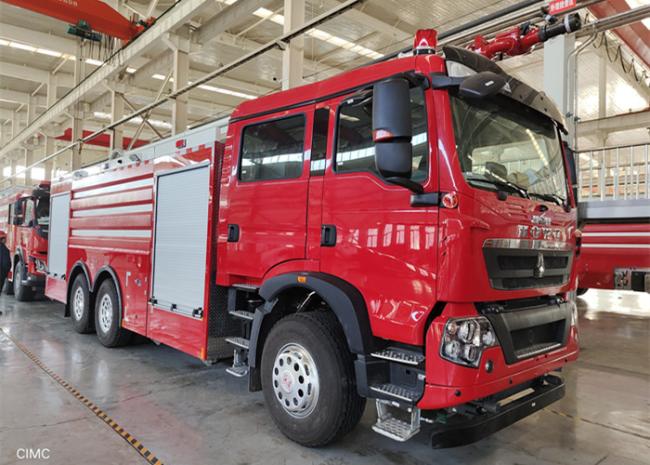

Piston Primer Pump 60L/S Flow Water And Foam Fire Trucks 20490Kg Max Load
Piston Primer Pump 1.0MPa 60L/S Flow Water And Foam Fire Trucks 20490Kg Max Load
Pump drive system
| Model | YTQ600F sandwich type |
| Manufacturer | YANGZHONG |
| Transmission shaft | High balance precision |
Fire monitor
| Model | PS50 |
| Flow | 3000L/min |
| Pressure | 10bar |
| Range | water≥65m |
| Rotation angle |
Level 360° Pitching —15°~ +90° |
Liquid tank
| Capacity | Water: 7600kg |
| Material | Qualitative carbon steel |
| Structure | Total side girder |
| Device |
1 ingate 1 overflow device 1 liquid level sensor 1 DN40 drain outlet with valve 4 DN80 filling pipe end Conform to rule GA39.4-92 |
Pipeline
| Outlet pipeline |
4×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet |
1×DN150 outside inlet 1×DN150 valve |
| Monitor pipeline |
1×DN100 monitor pipeline 1×DN100 butterfly valve |
| Residual water outlet | Water cock |
| Cooling water pipeline | The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline. |
Side girder
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
