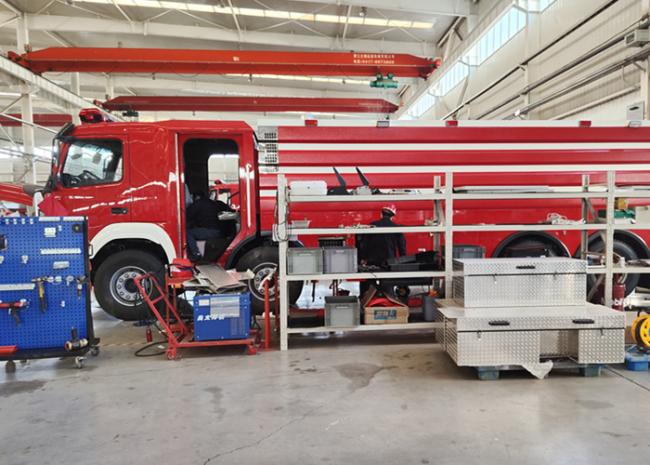

8x4 Drive Piston Primer Foam Fire Trucks 95km/H Anti Corrosion
1800+4600+1350mm wheelbase Piston Primer Water And Foam Fire Trucks 95km/h
Fire monitor
| Model | Weisite PL64 |
| Position | Rear roof |
| Flow | 64L/s |
| Pressure | 1.0MPa |
| Range | water≥65m ,foam≥60m |
| Rotation angle |
Level ≥360° Max. elevation angle ≥+45° Max. depression angle ≥-7° |
Liquid tank
| Capacity | Water: 17000kg Foam: 7000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Device |
2 ingate 1 overflow device 2 liquid level sensor 2 DN50 drain outlet with valve 4 filling pipe end Conform to rule GA39.4-92 |
Side girder
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
Equipment tank
| Material | Q235A high quality steel combine with porous steel |
| Structure | Split type welding structure |
| Equipment compartment door | The light quality aluminum alloy, with shutter doors, lightweight and reliable. |
| Internal structure | the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level. |
Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate
Structure: adopt the gas springs plus shutter fasten, safe and
Reliable, each petal plate bearing ≥150Kg
