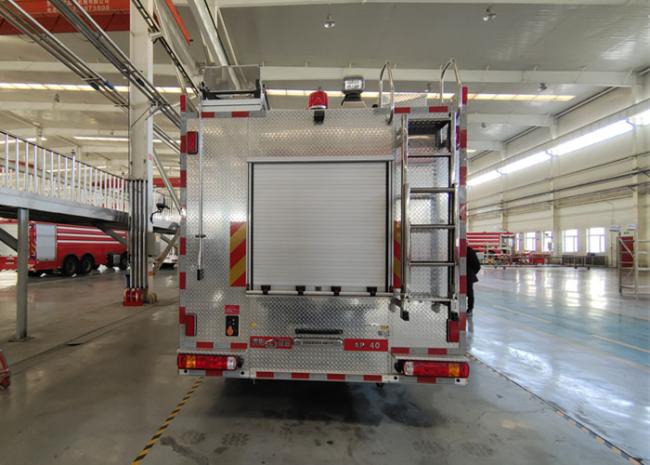

A Modified (1+1+4) Cab Rescue Fire Fighting Trucks 96km/H Maximum Speed

Chassis:

Model: HOWO

Drive form: 4×2

Cab: A modified (1+1+4), rear mounted four with air breathing aircraft

Glass certificate: 3C, E11

Wheelbase(mm): 4425

Maximum permissible load: 18000Kg

Axle rating (Kg): 7490/13000

Max speed: 96Km/h

Tire rating: 12.00R20/13

Size rim/wheel: 8.5-20

Minimum turning diameter: ＜15.6m

Engine In-line Six cylinder, turbocharged intercooled, high pressure common rail, electronic control

Engine maximum power: 213kw

Maximum torque: 1150NM

Emission standard: China V

Engine: Bore/Stroke/Engine Capacity (cc): 126/130/9.726L

Gear-box: ZF 9S-1310 OD Manual gearbox.

Lift lighting system:

Lift lighting electrical system by 13.5KW Honda generator, 4.0kW main lighting, raised about 7.5m (off) the pneumatic lift system, electrical control cabinet and other components.

Generator:

Model: Gasoline generator EH3135 (Honda power)

Rated output power(kVA): 13.5

Maximum output power(kVA): 14.5

Power factor: 0.8

Voltage(V): 380/220

Electric current(A): 16.5A

Frequency(HZ): 50

Fuel: Gasoline

Lifting lighting system:

Manufacturer: Zhejiang interstellar

Model: SG 65-41000G

AGL: ≥7.5m

Lamp power: 4 x 1000W

Lamps horizontal rotation angle: 360 °

Lamps vertical rotation angle: 360 °
