100Km/H Fire Brigade Emergency Rescue Truck 6.45m Telescopic Light 5000kg Crane
Price:
Factory price, negotiable
MOQ:
1 unit
Delivery Time:
180days
Brand:
CIMC Jindun
Product Description
100Km/H Fire Brigade Emergency Rescue Truck 6.45m Telescopic Light 5000kg Crane
JY98/H5 rescue fire truck is a fire truck modified with ZZ5207N4617E1 chassis. The car integrates many functions such as forcible entry, traction, lifting, lighting, etc. Its performance is reliable, its function is applicable, and it is easy to use. It is ideal for equipped with large and medium-sized city special fire brigade and large and medium-sized petrochemical enterprises, military, airport and port terminals. equipment. The vehicle provides a good rescue and rescue means for saving people, dealing with traffic accidents and natural disasters on land.
| Vehicle | Full load mass | 14990 kg |
| Front axle load mass | 5590 kg | |
| Rear axle load mass | 9400kg | |
| Crew members(including driver) | 6 | |

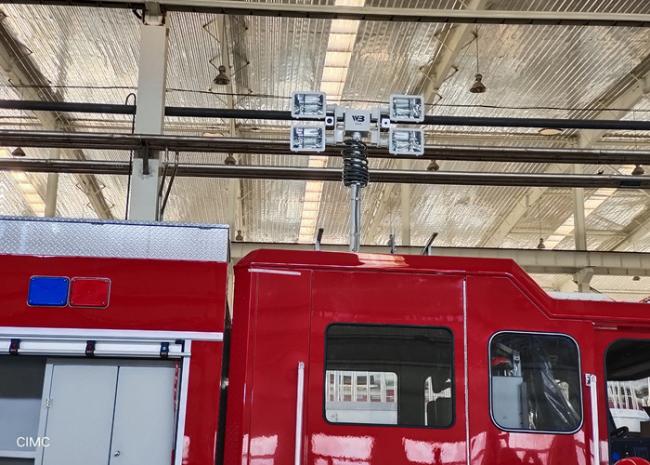

| Lifting light | Model | SG65-41000G |
| Lifting Height | 6.45m | |
| Terrain clearance | ≥7.5m | |
| Control system operating voltage | DC24V | |
| Lamp operating voltage | 220V | |
| Lamp power | 4×1000W | |
| Horizontal rotation angle of the lamp | 360° | |
| Vertical rotation angle of the lamp | 360° | |
| Generator | Model | EH3135 |
| Rated output power | 13.5 Kva | |
| Maximum output power | 14.5 kva | |
| Power factor | 0.8 | |
| Voltage | 380/220 V | |
| Electric current | Each phase 16.5A | |
| Frequency | 50HZ | |
| Fuel | gasoline | |
| Continuous working hours | 6.5 hours | |
| Crane | Model | SQ5ZK2 |
| Maximum lifting mass | 5000kg | |
| Maximum lifting moment | 10.5T.m | |
| Swing moment | 1.2T.m | |
| Maximum working range | 8m | |
| Rotary range | 370° | |
| System rated pressure | 30MPa | |
| Caution | The normal and stable rotation range is within 180° of the rear part of the vehicle. The lifting stability on both sides of the equipment box is relatively low, and the heavy objects are unexpected in the operator's field of vision, posing a safety hazard. |
