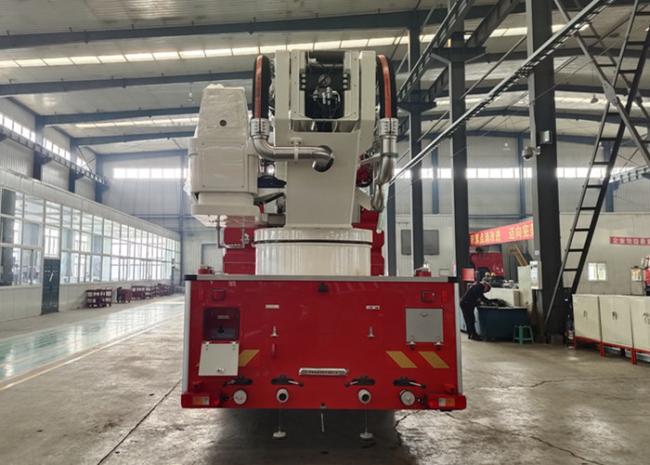

6 Seats 6×4 Driving Water Tower Fire Truck with 300L Fuel tank
25m Max Working Height Water Tower Fire Trucks 300L Steel Fuel Tank
Electrical system
Waterway operation panel
At the tail of pump room.
Alarm lamp and stroboscope lamp
In front of the vehicle roof equipped with TBD-JY210 cylindrical red revolving alarm lamp, LTE595 stroboscope lamp on both side.
Controller
Finnish EPEC2024 imported with original packaging
Remote Control
Italian AUTEC wireless remote controller imported with original packaging, effective working radius 100m.
Pump room and storage compartment
| Manufacturer | Shanghai Jindun special vehicle equipment Co., Ltd |
| Material | 6061 T6 aluminium alloy sections |
|
2.5mm aluminum sheet Skin and plaque 2.5mm aluminum alloy base plate and roof |
|
| Structure | Welding structure |
| Curtain door | Roller shutter |
| Ladder | Aluminum profile movable ladder with handrail |
Tread
| Manufacturer | Shanghai Jindun special vehicle equipment Co., Ltd |
| Material | Steel frame cover aluminium alloy |
| Size | Width 500mm |
| Structure | Gas spring and roller shutter(each tread bearing ≥150kg) |
Hydraulic system
Hydraulic oil pump
| Model | SCP-047L-N DL4 L35 SO SO |
| Manufacturer | HAWE HYDRAULIK |
| Geometric displacement | 47ml/r |
| Max. speed of revolution | 1900r/min |
| Pressure | 40MPa |
Outrigger control valve
| Model | 4WMME6Y1X-ED24H |
| Manufacturer | Shanghai Jellix hydraulics co., Ltd |
| Rated rate | 45L/min |
| Working Pressure | 35MPa |
FAQ:
1. Q:Are you a factory or a trade company?

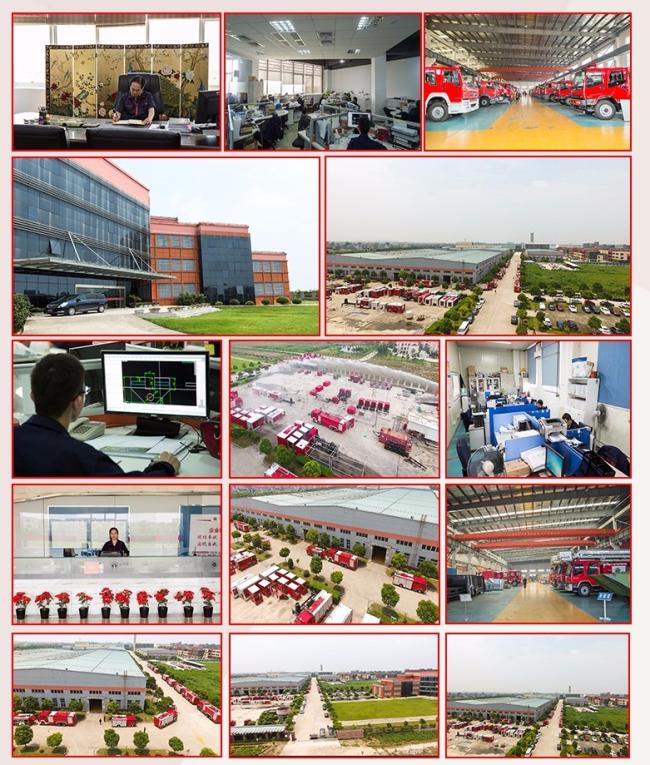

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
