270VAC 1-6KW Hybrid Lithium Ion Ups Off Grid Solar Inverter 48VDC
1 - 6KW Hybrid Solar Power Inverter Off Grid With Generator Restart Signal
Different Features:
High frequency MPPT solar inverter solar hybrid inverter(Based on IGBT):
- HD plus 1000va 2000va modified sine wave inverter with PWM 40A solar charge controller
- PSC plus 3000va 5000va pure sine wave inverter with MPPT 40A,60A solar charge controller
- Auto restart when AC recovers

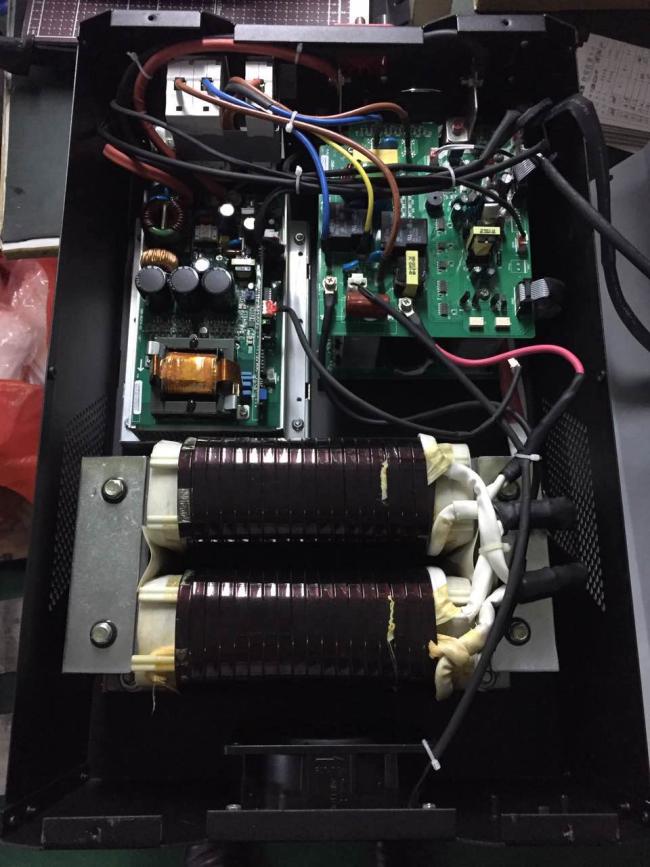

Low frequency MPPT solar inverter solar hybrid inverter(Based on Transformer):
- CNS110 1-12KW pure sine wave inverter with MPPT solar charge controller, LCD can show solar and inverter parameters
- CNS110 Plus 1-12KW pure sine wave inverter with MPPT solar charge controller, LCD can only show inverter parameters
- Generator restart signal
- 3 times peak power
Same Features:
- Compatible to mains or generator power
- AC and solar charger
- Wide dc input votlage 80-270vac
- Compatible to mains or generator power
- Selectable AC or solar priority function6. Adjustable charging current
Application:
CONSNANT 1-12kw power inverter off grid solar inverter hybrid inverter can work with solar energy, generator and AC mains. They are widely used for home appliances and office devices for long time backup.
CNS110 Series Technical Specifications:
| Battery Inverter Mode Specifications: | |||
| Output | Output Voltage | Sine wave | |
Rated Output | LV:1-6KW | HV:1KW-12KW | |
| Power Factor | 0.9~1.0 | ||
Nominal Output | LV:120Vac±10% rms | HV:230 Vac±10% rms | |
Nominal Output | 60Hz±0.3Hz | ||
| DC Voltage | Nominal DC | 12VDC/24VDC/48VDC | |
| DC Voltage Range | 10-15.5Vdc for 12V battery | ||
| 20-31.0 Vdc for 24V battery | |||
| 40-62.0 Vdc for 48V battery | |||
| Low Battery Alarm | 10.5Vdc±0.3Vdc for 12V Battery | ||
| 21.0 Vdc±0.6Vdc for24V Battery | |||
| 42.0 Vdc±1.2Vdc for 48V Battery | |||
Low DC | 10.0Vdc±0.3Vdc for 12V Battery | ||
| 20.0Vdc±0.6Vdc for 24V Battery | |||
| 40.0Vdc±1.2Vdc for 48V Battery | |||
| High DC input alarm&fault | 16Vdc±0.3Vdc for 12V Battery | ||
| 32Vdc±0.6Vdc for 24V Battery | |||
| 64Vdc±1.2Vdc for 48V Battery | |||
| High DC input recorvery | 15.5Vdc±0.3Vdc for 12V Battery | ||
| 31.0Vdc±0.6Vdc for 24V Battery | |||
| 62.0Vdc±1.2Vdc for 48V Battery | |||
| AC Charger | Nominal Charge Current | 20A/35A/50A/70A/90A(5satges adjustable charging current) | |
| Charge Current Regulation | ±5Adc | ||
| Over Charge protection | Bat.V≧15.5VDC for 12V battery | ||
| Bat.V≧31.0VDC for 24V battery | |||
| Bat.V≧62.0VDC for48V battery | |||
| Beeps 0.5s every 1s& fault after 60S | |||
| Algorithm | |||
| Three stage:Boost CC(Constant current stage) →Boost CV(Constant voltage stage) →Float(constant voltage stage) | |||
| Solar Charger | Rated Charge Current | 40A | 60A |
| Rated Charge Battery Voltage Type | 12V/24V/48V | 12V/24V | |
| Max PV open Circuit array voltage | 12V for 40Vdc | ||
| 24V for 40Vdc | |||
| 48V for 110Vdc | |||
| Charger Mode | MPPT | ||
| PV Low Voltage Re-connect | PV≧Bat.V=3V | ||
| PV Low Voltage Disconnect | PV≦Bat.V | ||
| Efficiency | Efficiency | ≧97% | |
| Efficiency(Battery Mode) | ≧85% | ||
| Efficiency(Line Mode) | >98% | ||
| Transfer Time | AC to DC | 20ms(Max) | |
| DC to AC | 15ms(Max) | ||
| System parameter | Over-load Protection | 110%<load<150%, beeps 0.5s every 1s, and fault after 60s off the output, | |
| Surge rating(10s) | 1:3(VA) | ||
| Power Saver | Load≦25W(enabled on “P/S auto” setting of Remote comtro;) | ||
| Protections | Low battery, over charging, overload, over temp | ||
| Indicatoers | LED+LCD Display | ||
| General Specifications | Operation Temperature Range | 0℃ to 40℃ | |
| Strorage Temperature | -15℃~60℃ | ||
| Operation Humidity | 5% to 95%(non-condensing) | ||
| Audible Noise | 60dB max | ||
| Cooling | Forced air, Variable speed fan | ||
| Dimension(L*W*H) | 1-3KW: 526*423*260mm | ||
| Net Weight(Kg) | 1KW:21.5Kg; | 1.5KW:23.5Kg | |
| 3KW:30.5Kg | 4KW:32Kg | ||
| 5KW:36.5Kg | 6KW:40.5Kg | ||
| 7KW:43.5Kg | 8KW:50Kg | ||
| 10KW:57.5Kg | 12KW:60Kg | ||
