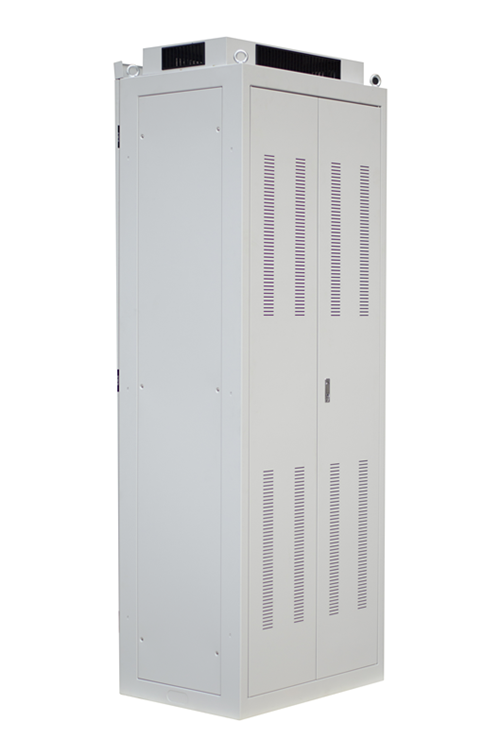

Electricity Industrial Uninterruptible Power Supply Multifunctional Protection 10 - 100KVA
Electricity Industrial UPS Uninterrupted Power Supply High Power 10 - 100KVA
Product Snapshot:
Model: 10-100 KVA
Nominal voltage: 380/400/415VAC
Nominal frequency: 50Hz/60Hz
Output power factor: 0.8
Application:
Petroleum, chemical industry, gas and power station and so on.
Key features:
- Adopt full digital control technology
- Intelligent detection and monitoring function
- Digitally control the static switch with zero switch
- Full isolation between input and output
- Super low output zero earth voltage
- DC UPS isolated with utility power completely
- Cubical design with power standard (customization)
- Multifunctional protection for overvoltage, under voltage, over current, short circuit and over temperature and so on.
- Large-screen LCD monitor with Chinese and English operation interface
- Ultralong 256 event record, user-friendly analysis and management to the situation of the power supply (touch screen optional)
- Static bypass has a strong anti-overload capability
Unique option:
- SNMP card
- Dry contact card
- Signal transmitter
- Bypass isolation and voltage regulation
- Increase feeder circuit (standard for 8 loops)
- 12 pulse rectifier
- The appearance of special models(standard dimension:800×600×2260mm)
Our Service:
1. 2% spares together with shipment for urgent issue.
2. All of the necessary documents such as drawing, manual etc.
3. We will provide the online service by mail
4. You can get expert guides from us all the time.We can despatch engineer to assist you solve the problem if necessary (But you are requested to pay for the cost of ticket, hotel etc. ). you can despatch engineer(s) to our company to get training.
5. One year warranty
Technical Specification:
| CND310 10KVA-100KVA | ||||||||||||||
| Model (KVA) | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | |||||
| Rating capacity(KW) | 8 | 12 | 16 | 24 | 32 | 40 | 48 | 64 | 80 | |||||
| Rating voltage | 220V(one-phase) /380V(three phase) | |||||||||||||
| AC input | ||||||||||||||
| Voltage range | ±25% | |||||||||||||
| Frequency range | 50,60Hz±10% | |||||||||||||
| Soft start | 0-100% in 5” | |||||||||||||
| Power factor | 0.95(with input filter) | |||||||||||||
| Bypass input | ||||||||||||||
| Permitted voltage range | ±15% | |||||||||||||
| Frequency range | 50/60Hz±5% | |||||||||||||
| Output | ||||||||||||||
| Voltage accuracy | 220V±1%(steady load) 220V±3%( fluctuating load) | |||||||||||||
| Permitted Frequency range | 50/60Hz±0.05Hz(powered by battery) | |||||||||||||
| Power factor | 0.8 | |||||||||||||
| THD | Linearload<2%, non linear load<4% | |||||||||||||
| Dynamic transients | <5% | |||||||||||||
| Current crest ratio | 3:1 | |||||||||||||
| Overload capacity | Normal in 110% load, 125% for 10min | |||||||||||||
| Efficiency | Double switch:94%, ECO:98% | |||||||||||||
| DC | ||||||||||||||
| Battery voltage | 220V | |||||||||||||
| Cutoff voltage | 185V | |||||||||||||
| Maximum discharge current | 36A | 55A | 73A | 109A | 145A | 181A | 218A | 291A | 364A | |||||
| Penal display | ||||||||||||||
| LCD | Chinese/English UPS status, operation instruction input voltage, output voltage, current, frequency, battery voltage, value of charge and discharge current, accident display, warning | |||||||||||||
| Environment | ||||||||||||||
| Temperature | 0ºC-40 ºC | |||||||||||||
| Humidity | 0-95%(no condensing) | |||||||||||||
| Storage temperature | -25 ºC—55 ºC | |||||||||||||
| Altitude | <1500m | |||||||||||||
