CONSNANT bypass cabinet is designed to be used together with bidirectional battery inverter and PV inverter

Price Negotiable
Price: Negotiable
MOQ: 2 Unit
Delivery Time: 5-7 days for sample order, 7-15 days for mass production
Brand: CONSNANT
Product Description

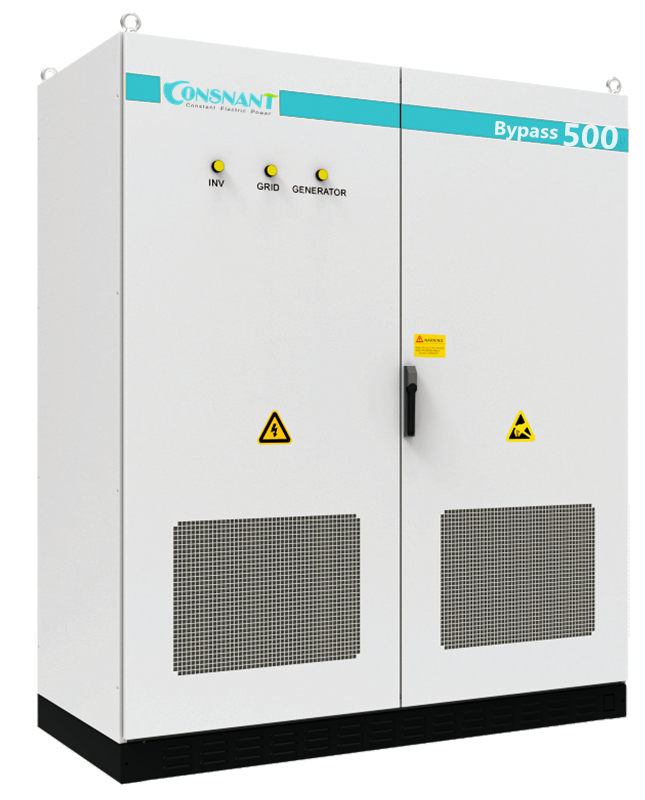

CONSNANT bypass cabinet is designed to be used together with bidirectional battery inverter and PV inverter to realize seamless transfer between on and off grid mode automatically







Why Choose Us?





We have experienced team for more ten years and high-tech equipment.

Our products is with ICE, ISO and Chinese TLC

We can make product according to your requirements, such as your size, color, design, and your logo.

We can offer you very competitive price.

You can get expert guides from us all the time.





 Technical Specifications:





CNS 50K

bypass cabinet

CNS 100K

bypass cabinet

CNS 250K

bypass cabinet

CNS 500K

bypass cabinet

Rated voltage 400V
Rated current 73A 144A 360A 722A
Rated frequency 50HZ
Rated power 50KVA 100KVA 250KVA 500KVA
Max current 90A 175A 435A 866A
Transfer between on/off grid Automatic ≤10ms
Zero export function Opt
Inv breaker 160A 250A 630A 1250A
SPS breaker 160A 250A 630A 1250A
Grid breaker 160A 250A 630A 1250A
Load breaker 160A 250A 630A 1250A
Bypass breaker / / / 1250A
Generator breaker Opt
Load breaker 160A 250A 630A /
Lightning protection Type II
Protection degree IP20
Relative humidity 0-95% non-condensing
Environment temperature -25℃...+55℃
Dimension(W/H/D) 700/1630/500mm 1600/1900/800mm
Weight 77kg 610kg
Communication interface RS485/CAN
