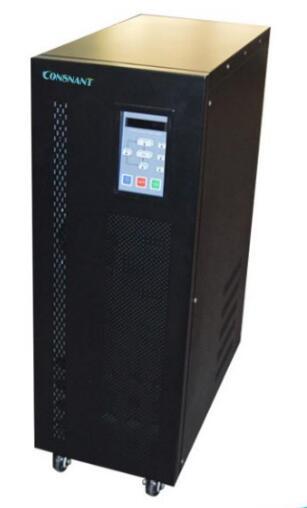

Three phase low frequency online UPS 10KVA 15KVA 20KVA 30KVA 40KVA igital UPS for telecommunication
Price:
Negotiable
MOQ:
1Uint
Delivery Time:
15days after receiving 30% deposit
Brand:
CONSNANT
Product Description
Features
Specification:
-
3ph/1ph, support 380/400/415V, 50/60Hz power system.
-
Pure-online double conversion technology, to provide the best quality of power supply.
-
Suitable for all kinds of loads, and a high overload capacity.
-
Super wide range of input voltage anti-interference, adapt to harsh environment in power network
-
Intelligent battery management, extending the battery life.
-
Large LCD display in Chinese and English, and Friendly human-machine interface
| Model | CNG311 | ||||
| Capacity | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA |
| Rated Voltage | 380V three phase 4 wires+G | ||||
| Rated Frequency | 50/60Hz | ||||
|
AC Input |
|||||
| Voltage Range | 380V+-25%three phase 4wires+G | ||||
| Frequency range | 50/60HZ+-5% | ||||
| Soft Start | 0-100% 5 sec | ||||
| Power Factor | >0.92(with input filter) | ||||
| Bypass input | |||||
| Voltage range | 380V+-25%three phase 4wires+G | ||||
| Frequency Range | 50/60HZ+-10% | ||||
| Inverter Bypass |
(Overload)0ms |
||||
| Output | |||||
| Voltage Accuracy | 220V+-1%(steady-state load)220V+-3%(load fluctuations) | ||||
| Frequency Accuracy | 50/60HZ+-0.05HZ(battery power) | ||||
| Power Factor | 0.8(lagging) | ||||
| Distortion | <3%(linear load),<5%(non linear load) | ||||
|
Steady-state Response time |
<10ms | ||||
| Overload capacity | 110%load can run normally,125%10min,150%1min | ||||
| Battery | |||||
| Nominal Voltage | 192V | ||||
| Float Voltage | 216V | ||||
| Shut-off Voltage | 168V | ||||
| Charge Current | 4A/8A optional | ||||
| Other | |||||
| Display | LED/LCD | ||||
| Alam | Sound and light alarm | ||||
| Protection | UPS over current,short circuit,under voltage,over temperature | ||||
| Environment | |||||
| Noise | 60-65dB | ||||
| Operating | Temperature:0-40℃ Relative humidity:0-90% | ||||
| Box Color | Gray(optional) | ||||
Packaging & Shipping
- Payment T/T,L/C, and money gram
- T/T 30% deposit, balance in full before shipment
- Packing woodencase / as customer request
- Warranty 1 year
