AC PV 140A Hybrid Ups Inverter Solar Charging 220/230VAC LCD Screen
220/230VAC Hybrid PV Energy Storage Solar Inverter
Product Instruction:
HT series is a new hybrid PV energy storage inverter controller integrating PV energy storage,mains charging
and storage and AC sine wave output. Using DSP control through advanced control algorithms, it comes with high
response speed, high reliability, high industrialization standard and other characteristics. Four charging modes are
available: only PV, mains priority, PV priority, and hybrid charging by mains&PV; two output modes: inverter and
mains are available to meet different application needs.
Key Feature:
1. Full digital voltage; current double closed loop control, combined with advanced SPWM technology to output
pure sine wave.
2. Two output modes: mains bypass and inverter output enable uninterrupted power supply.
3. 4 charging modes are available for choice: only PV, mains priority, PV priority, and hybrid charging.
4. AdvancedMPPT technology with efficiency up to 99.9%.
5. LCD screen design, with 3 LED indicators, for dynamic display of system data and run status.
6. ON/OFF rocker switch controls AC output.
7. Power saving mode reduces no-load loss.
8. Intelligent variable speed fan ensures efficient heat dissipation, and thereby extends system life.
9. Double lithium battery activation modes: mains and PV, and supports lead-acid battery and lithium battery
access.
10. Multiple protections provide 360 ° all-round protection for the system.
11. Complete protections include multi-electrical appliance air switch short circuit protection, overvoltage and
undervoltage protection, overload protection, back-flow protection, etc.
12. Horizontal installation facilitates cabinet combination installation.
13. Lithium battery can be activated by both mains and PV panel.

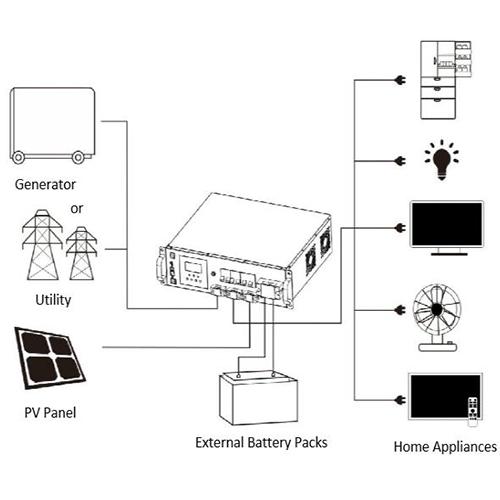

Appearance Reference:
Specification Reference:
| Model | HT4830S80-145 | HT4840S80-145 | HT4850S80-145 | |||
| Mains mode | ||||||
| Rated input voltage | 220/230Vac | |||||
| Input voltage range | (170Vac~280Vac) ±2% (90Vac-280Vac)±2% |
|||||
| Frequency range | 47±0.3Hz ~ 55±0.3Hz (50Hz); 57±0.3Hz ~ 65±0.3Hz (60Hz); |
|||||
| Overload/short circuit protection | Circuit breaker | |||||
| Conversion time | 10ms (typical) | |||||
| (bypass and inverter) | ||||||
| AC backflow protection | Yes | |||||
| Maximum bypass overload current | 40A | |||||
| Inverter mode | ||||||
| Output voltage waveform | Pure sine wave | |||||
| Rated output power (VA) | 3000(2600/2700 /3000) |
4000(3480/360 3800/4000) |
5000(4350/4500 /4800/5000) |
|||
| Rated output power (W) | 3000(2600/2700 /3000) |
4000(3480/360 3800/4000) |
5000(4350/4500 /4800/5000) |
|||
| Power factor | 1 | |||||
| Rated output voltage (Vac) | 230Vac(200/208/220/240Vac Settable) | |||||
| Output voltage error | ±5% | |||||
| Output frequency range (Hz) | 50Hz ± 0.3Hz 60Hz ± 0.3Hz |
|||||
| Efficiency | >92% | |||||
| Overload protection | (102%<load<125%) ±10%: Report error and turn off output after 5 minutes; (125%<load<150%) ±10%: Report error and turn off output after 10 seconds; Load>150% ±10%: Report error and turn off output after 5 seconds; |
|||||
| Peak power | 6000VA | 8000VA | 10000VA | |||
| Loaded motor capacity | 2HP | 3HP | 4HP | |||
| Output short circuit protection | Circuit breaker | |||||
| Bypass circuit breaker specification | 63A | |||||
| Rated battery input voltage | 48V (minimum starting voltage 44V) | |||||
| Battery voltage range | 40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm / shutdown voltage / overvoltage alarm / overvoltage recovery...LCD screen can be set) | |||||
| Eco mode | Load ””≤ 50W | |||||
| AC charging | ||||||
| Maximum charge current | 0-60A | |||||
| Charge current error |
± 5Adc | |||||
| Charge voltage range | 40 - 58Vdc | |||||
| Short circuit protection | Circuit breaker | |||||
| Circuit breaker specification | (AC IN) 63A/(BAT) 125A | |||||
| Overcharge protection | Alarm and turn off charging in 1 minute. | |||||
| PC charge | ||||||
| Maximum PV open circuit voltage | 145Vdc | |||||
| PV operating voltage range | 60-145Vdc | |||||
| MPPT voltage range | 60-115Vdc | |||||
| Battery voltage range | 40-60Vdc | |||||
| Maximum output power | 4200W | |||||
| PV charge current range (settable) | 0-80A | |||||
| Charge short circuit protection | BAT circuit breaker and fuse | |||||
| Wiring protection | Reverse polarity protection | |||||
| Hybrid charging Max charger current specifications (AC charger+PV charger) | ||||||
| Max charger current(can be set) | 0-140A | |||||
| Certified specification | ||||||
| Specification certification | CE(EN62109) | |||||
| EMC certification level | EN61000, C2 | |||||
| Operating temperature range | -15°C to 55°C | |||||
| Storage temperature range | -25°C ~ 60°C | |||||
| RH range | 5% to 95% (conformal coating protection) | |||||
| Noise | ≤”60dB | |||||
| Heat dissipation | Forced air cooling, adjustable air speed | |||||
| Communicat ion interface | USB/RS485 (WiFi/GPRS)/Dry Node Control | |||||
Remark:
Warning: risk of electric shock! Make sure all power supplies are disconnected from the all-in-one machine and
the capacitor is completely discharged before performing any checks or operations!
