Counterbalanced Narrow Aisle Truck Capacity 1000kg Small Turning Radius

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 25 - 30 days

Brand: REACH

Product Description

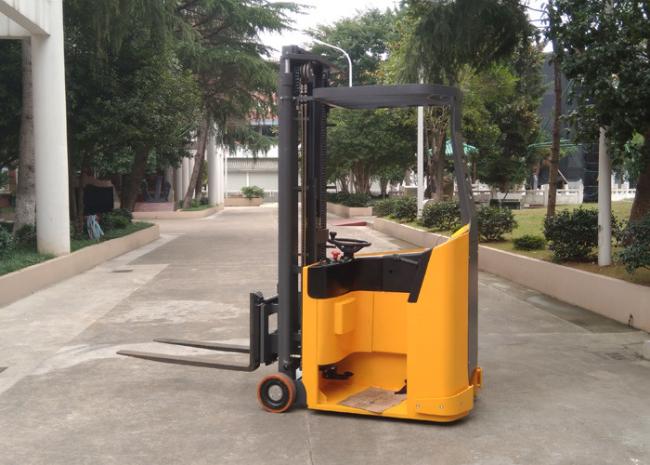

Small turning radius counterbalanced narrow aisle forklift truck capacity 1000kg easy and smart to operate

Quick Details:

Advantages:

Advanced AC control system with MOSFET delivers smooth driving speed control for precise.
Small turning radius, easy and smart to operate.
Lean-on compartment reducing operator's fatigue.
With regenerative braking system for driving and electronic braking system for parking.
Low Battery Protection setting prolongs service life.
With deadman switch on floor to cut off the power when operator leave the foot from cab.
Lifting cylinders on the both of mast provides best visibility.
The optional of Full Hydraulic Steering System and

SPECIFICATIONS
Model		CPD10A
Power		battery
Load capacity	kg	1000
Load center distance	mm	600
Load distance, centre of drive axle to fork	mm	140
Tyre size, front	mm	250*80
Tyre size, rear	mm	280*100
Height, mast lowered	mm	2155
Free lift	mm	1600
Max. lifting height	mm	3000
Height, mast extended	mm	3565
Height of overhead guard(cabin)	mm	2090
Height of tiller in drive position min./max.	mm	1000
Overall length	mm	2210
Overall width	mm	890
Fork dimensions	mm	35/100/950
Fork carriage width	mm	560
Ground clearance, centre of wheelbase	mm	50
Aisle width for pallets 1000*1200 crossways	mm	2700
Aisle width for pallets 800*1200 lengthways	mm	2810
Turning radius	mm	1200
Travel speed, laden/unladen	km/h	5.8/6
Lift speed, laden/unladen	m/s	0.11/0.15
Lowering speed, laden/unladen	m/s	0.15/0.11
Battery	V/Ah	24/360
Service weight	kg	2120
