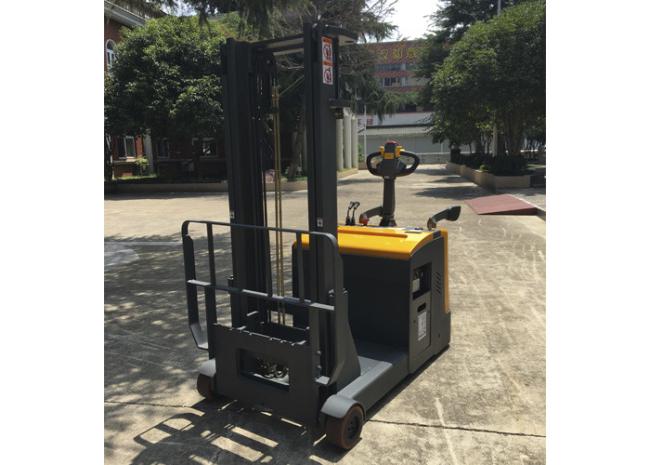

320AH Counterbalance Forklift Truck , Narrow Aisle Lift Truck 1600mm ​Turning Radius

1500kg counterbalanced warehouse forklift trucks with Germany imported steel mast


Quick Details:

Model: Counterbalanced electric warehouse forklift trucks CPD15R
​​​Capacity: 1500kg
Lift height: 2500-5600mm
Fork dimensions: 35/100/950(1070)mm

​Aisle width for pallets 1000*1200 lengthways: 2990mm

​Aisle width for pallets 800*1200 crossways: 3120mm

​Turning radius: 1600mm
Travel speed, load/unload: 6.8/7km/h​

​Lifting speed, load/unload: 0.12/0.19m/s

​Lowering speed, load/unload: 0.42/0.41m/s
Battery: 24V320Ah

​Service weight: 2030kg


Advantages:

• The warehouse forklift trucks capacity 1.5 tons and lifting height from 2.5 meters to 5.6 meters.
• Compact structures can be used in narrow warehouses.
• It is mainly used for storage and short distance transportation of pallets and goods on warehouse shelves.
• The standard is walking type, if you need a long time of transportation, you can choose to pedal (optional) station driving type.
• Multifunctional handle, can control lift, lower, forward, backward, horn warning, emergency reverse and other functions in one.

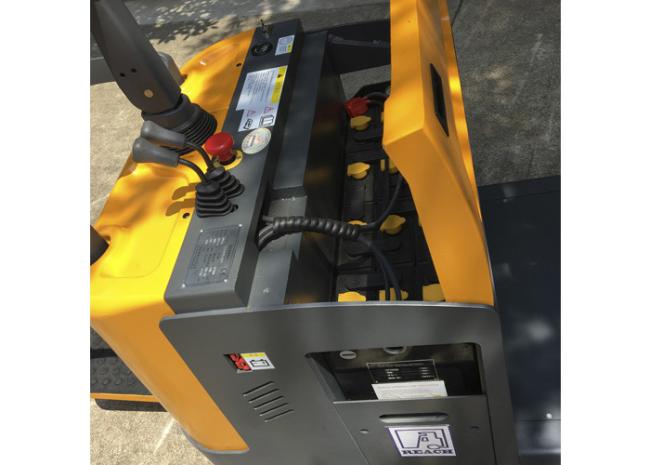

• Easy to maintain, side pull type battery, is conducive to the exchange and maintenance of battery.

Option:

• Electric power steering.
