Seated 3 Wheel Electric Forklift Truck 48V Battery 1552mm Turning Radius
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
1.8 ton three wheel electric forklift truck with Germany imported driving axle
Quick Details:
Model: Three wheel electric forklift truck CPD20SA-18
Capacity: 1800kg
Lift height: 3000-6200mm
Aisle width for pallets 1000*1200 crossways: 3120mm
Aisle width for pallets 800*1200 lengthways: 3220mm
Turning radius: 1552mm
Travel speed, laden/unladen: 14km/h
Battery: 48V490(560)AH
Advantages:
-
Over discharge protecting system
-
While the battery discharges 80%, the instrument warming light will light. Then it needs to lower the running and lifting speed to preserve the battery's using time.
-
Self- checking system.
-
With the fault code displayed in the instrument panel, it is very easy to control operation and find out the fault reason.
-
Braking oil cup is installed on the instrument panel, so as to check and add braking oil conveniently.
-
Side way battery box is easy to maintain.
-
Batteries located in the lowest part of frame improves forklift's running stability and makes batteries changing safer and more convenient, also the whole truck's maintenance becomes easy.
-
With two step pedal easy to get into the driving cab.
-
Adjustable steering wheel and the seat, the driver can adjust the position according to his need.
-
Integrated light switch and steering signal rod.
-
ABS instrument board in the driving-box is durable and beautiful.
-
The design of the controlling lever position fit the Ergonomic principles which can reduce the driver's fatigue.
-
Better front vision.
-
The instrument is on the right side of the driving-box which provides better front vision, ensure safety operating.
-
Emergency power cut off plug.
-
The plug is on the left side of the driver's seat which is used for emergency stop.

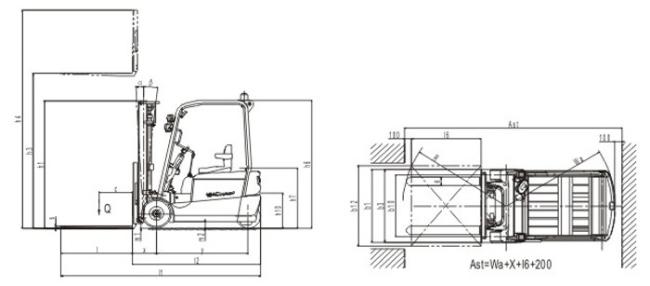

| SPECIFICATIONS | ||
| Model | CPD20SA-18 | |
| Drive | Dual Front Drive Wheel | |
| Operation type | seated | |
| Load capacity/rated load | kg | 1800 |
| Load center distance | mm | 500 |
| Load distance, centre of drive axle to fork | mm | 358 |
| Wheelbase | mm | 1362 |
| Axle loading, laden front/rear | kg | 4166/914 |
| Axle loading, unladen front/rear | kg | 1455/1826 |
| Tyres | super elastic solid tires | |
| Tyre size, front | mm | 200/50-10 |
| Tyre size, rear | mm | 15*4½-8 |
| Tread, front | mm | 937 |
| Tread, rear | mm | 165 |
| Tilt of mast/fork carriage forward/backward(α/β) | ° | 3/6 |
| Height, mast lowered | mm | 2000-2660 |
| Free lift | mm | option |
| Lift height | mm | 3000-6200 |
| Height, mast extended | mm | 4050-7250 |
| Height of overhead guard(cabin) | mm | 2005 |
| Seat height/stand height | mm | 938 |
| Coupling height | mm | 560 |
| Overall length | mm | 3000 |
| Length to face of forks | mm | 1930 |
| Overall width | mm | 1130 |
| Fork dimensions | mm | 40/100/1070 |
| Fork carriage width | mm | 1088 |
| Ground clearance, laden, below mast | mm | 90 |
| Ground clearance, centre of wheelbase | mm | 100 |
| Aisle width for pallets 1000*1200 crossways | mm | 3120 |
| Aisle width for pallets 800*1200 lengthways | mm | 3220 |
| Turning radius | mm | 1552 |
| Travel speed, laden/unladen | km/h | 14/14 |
| Lift speed, laden/unladen | mm/s | 270/420 |
| Lowering speed, laden/unladen | mm/s | ＜600 |
| Max. gradeability, laden/unladen | % | 15/20 |
| Battery | V/Ah | 48/490(560) |
| Sound level at the driver's ear acc. to DIN 12053 | dB(A) | 68 |
| Service weight | kg | 3280 |
