Mechanical Diesel Forklift Truck 3000kg Capacity Adjustable Seat High Strength
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
Industry used 3000kg diesel powered forklift can add forklift attachments
Quick Details:
Capacity: 3000kg
Max. lifting height: 3000-6000mm
Tyres type: Pneumatic/solid
Tilt of mast/fork carriage forward/backward: 6°-12°
Fork dimensions: 45/130/1070mm
Engine type: 490BPG/C240/4JG2/4TNE92/4TNE98
Advantages:

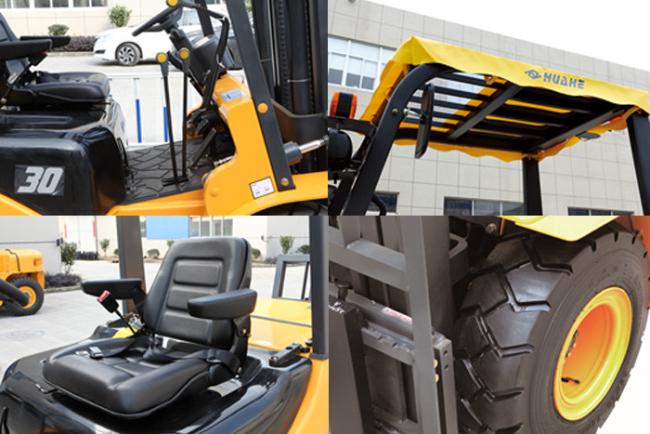

Spacious and comfortable driving and operating space, suitable for your needs.
The adjustable design seat is suitable for ergonomics, and there are up to four groups of rubber pads, which can effectively reduce vibration and noise, reduce operator fatigue, adjust armrest, improve operator comfort, forklift seat belt and forklift safety factor.
The intimate design awning, shelter for you in the rain and other weather conditions.
Use the advanced full hydraulic steering system to ensure the fluency and ease of steering.
The sturdy and durable front lamp is made of high strength material, and the PHILPS bulb is used. It has higher brightness, longer life and headlights can also adjust the angle, so as to provide enough brightness for your work.
| SPECIFICATIONS | ||
| Model | FD30 | |
| Power | Diesel | |
| Operation type | seat | |
| Load capacity | kg | 3000 |
| Load center distance | mm | 500 |
| Max. lifting height | mm | 3000-6000 |
| Load distance, centre of drive axle to fork | mm | 485 |
| Wheelbase | mm | 1700 |
| Axle loading, laden front/rear | kg | 6468/882 |
| Axle loading, unladen front/rear | kg | 1740/2610 |
| Tyres type | pneumatic/solid | |
| Tyre size, front | mm | 710*220/695*218 |
| Tyre size, rear | mm | 590*175/577*162 |
| Tread, front | mm | 1000 |
| Tread, rear | mm | 970 |
| Tilt of mast/fork carriage forward/backward | Grad | 6°-12° |
| Height, mast lowered | mm | 2060-3139 |
| Height, mast extended | mm | 4250-7250 |
| Height of overhead guard(cabin) | mm | 2105 |
| Seat height/stand height | mm | 1064 |
| Overall length | mm | 3750 |
| Length to face of forks | mm | 2680 |
| Overall width | mm | 1205 |
| Fork dimensions | mm | 45/130/1070 |
| Fork carriage width | mm | 1200 |
| Ground clearance, laden, below mast | mm | 135 |
| Ground clearance, centre of wheelbase | mm | 150 |
| Aisle width for pallets 1000*1200 crossways | mm | 3950 |
| Aisle width for pallets 800*1200 lengthways | mm | 3750 |
| Turning radius | mm | 2350 |
| Internal turning radius | mm | 575 |
| Travel speed, laden/unladen | km/h | 0-20 |
| Lift speed, laden/unladen | mm/s | 450 |
| Lowering speed, laden/unladen | mm/s | ＜600 |
| Max. drawbar pull, laden/unladen | N | 17120 |
| Max. gradeability, laden/unladen | % | 20/27 |
| Acceleration time, laden/unladen | s | 4/5 |
| Engine type | 490BPG/C240/4JG2/4TNE92/4TNE98 | |
| Engine power | kw | 37/34.3/44.2/34.7/44.3 |
| Rated speed | R/Min | 2650/2500/2450/2450/2300/2500 |
| Type of drive control | mechanical/hydraulic | |
| Operating pressure for attachments | Mpa | 16.5 |
| Sound level at the driver's ear acc. to DIN 12053 | dB(A) | ＜82 |
| Service weight | kg | 4350 |
