3 wheel Electric forklift truck , 1.5 Ton forklift truck for narrow aisle
3 wheel electric forklift truck , AC 1.5 Ton one rear driving wheel
Quick Details:
3 wheel electric forklift truck
Model: CPD15S-E
Load capacity: 1500kg
Max. lifting height: 2500mm - 5600mm
Ground clearence: 68mm
Aisle width (1000×1200mm pallets) crossways: 3050mm
Aisle width (800×1200mm pallets) lengthways: 3150mm
Travel speed, laden/unladen: 6.8/7 km/h
Advantages:
1. Load capacity 1500kg with side shift, the truck using steel plate with compact appearance and good durability.
2. Rubber wheel with good shock proof, which is suitable for both indoor , outdoor and different ground use.
3. The truck is using AC motor without brush, which is free to maintain.
4. CPD15S-E has good gradeability, it could climb 10% ramp with full loads.
5. CPD15S-E is configured with hydraulic power steering, makes the turning easier and effortless.
... ...

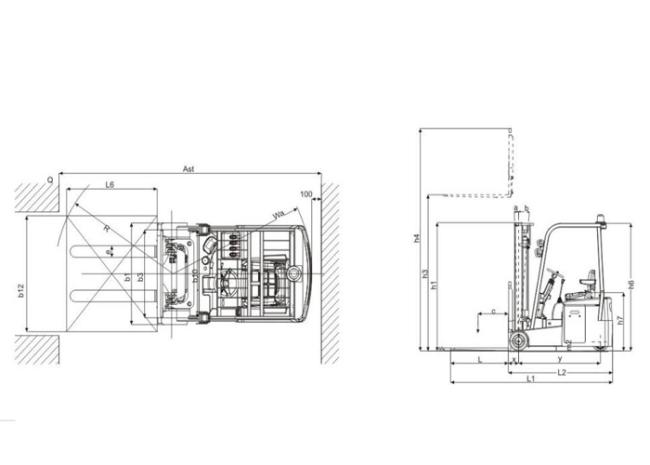

| SPECIFICATIONS | ||
| Model | CPD15S-E | |
| Drive | Rear Wheel Drive | |
| Operation type | seated | |
| Load capacity/rated load | kg | 1500 |
| Load center distance | mm | 500 |
| Load distance, centre of drive axle to fork | mm | 170 |
| Wheelbase | mm | 1348 |
| Axle loading, laden front/rear | kg | 3280/710 |
| Axle loading, unladen front/rear | kg | 975/1525 |
| Tyres | super elastic solid tires | |
| Tyre size, front | mm | 305*140 |
| Tyre size, rear | mm | 285*160 |
| Tread, front | mm | 912 |
| Tread, rear | mm | 0 |
| Tilt of mast/fork carriage forward/backward(α/β) | ° | 2/5 |
| Height, mast lowered | mm | 1980(3m) |
| Free lift | mm | option |
| Lift height | mm | 2500-5600 |
| Height, mast extended | mm | 3500-6600 |
| Overall width | mm | 1055 |
| Fork thickness | mm | 35 |
| Fork width | mm | 100 |
| Fork length | mm | 950(1070) |
| Fork carriage width | mm | 680 |
| Ground clearance, laden, below mast | mm | 68 |
| Ground clearance, centre of wheelbase | mm | 68 |
| Aisle width for pallets 1000*1200 crossways | mm | 3050 |
| Aisle width for pallets 800*1200 lengthways | mm | 3150 |
| Turning radius | mm | 1550 |
| Travel speed, laden/unladen | km/h | 6.8/7 |
| Lift speed, laden/unladen | mm/s | 100/150 |
| Climbing capacity, laden/unladen | % | 10/15 |

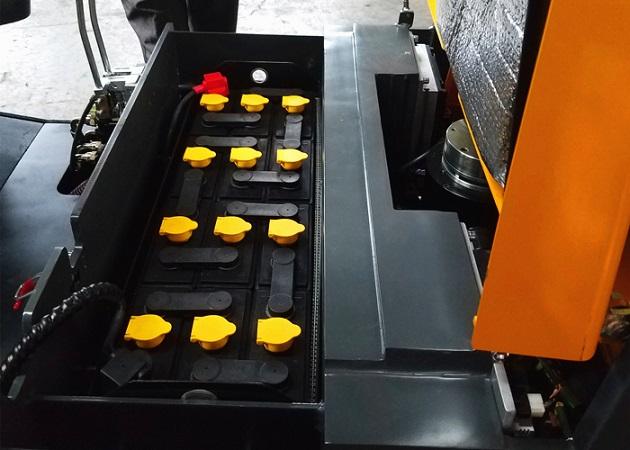

| Battery | V/Ah | 24/320(400) |
| Sound level at the driver's ear acc. to DIN 12053 | dB(A) | 68 |
| Service weight | kg | 2500 |
