HF-2000M Steam Shrink Tunnel Durable and Precise for Sleeve Labeling Efficiency
Price:
USD2300
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Howfond
Product Description
The HF-2000M steam shrink sleeve tunnel was designed and developed by HOWFOND
company as a result of rapid growth in the use of shrink sleeves, particularly in the form of
Sleeve Labels, which highlighted the need for low to high speed shrinking systems to match
the performance of sleeve application machines such as the HF-250M,HF-400H sleeve labeling
machine
1.We have two kinds of steam tunnel . tunnel with glass door and tunnel without glass door .
2. Features of our steam shrink tunnel.
(1) Superb shrink finish with filled or cold bottles
(2) Windows are installed inside of tunnel’s body, no water leaking.

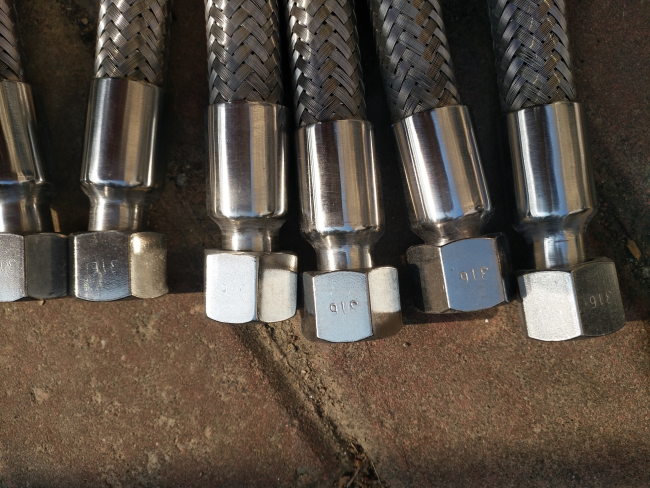

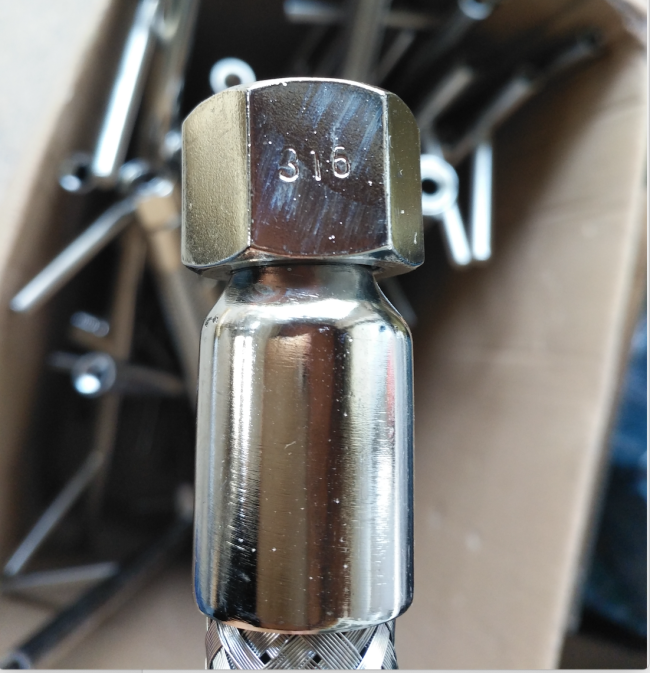

(3) Steam tubes are made of SS316 with rubber wrapping
(4) Low running cost, 50~60kg steam/0.3~0.4Mpa.
(5) 6 Steam spray tubes are adjustable for complex shapes of bottles.
(6) Exhausting blower is on the top of tunnel, its speed is adjustable.
(7) Simple manual adjustment, and completed control.
(8) Precise steam control by 3 digital handles for 3 areas, and saving steam.
(9) Cancel outer water collection tray, sealed. Can be used for high speed applications.
(10) Full body of tunnel is made of SS304 stainless steel
Electropolishing to steam jet pipes, makes longer working life, much brighter.

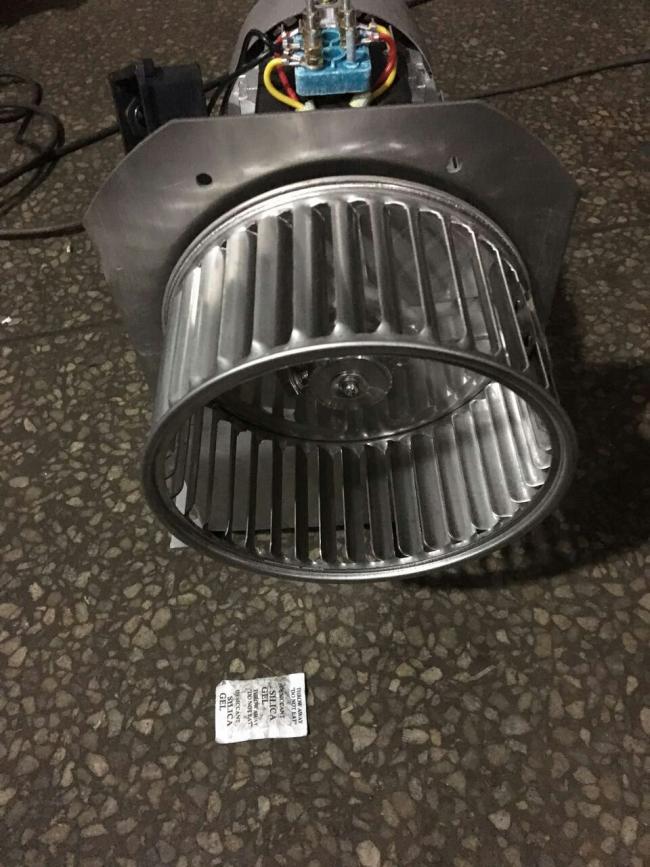

Blower motor for steam exhausting is varied and adjustable

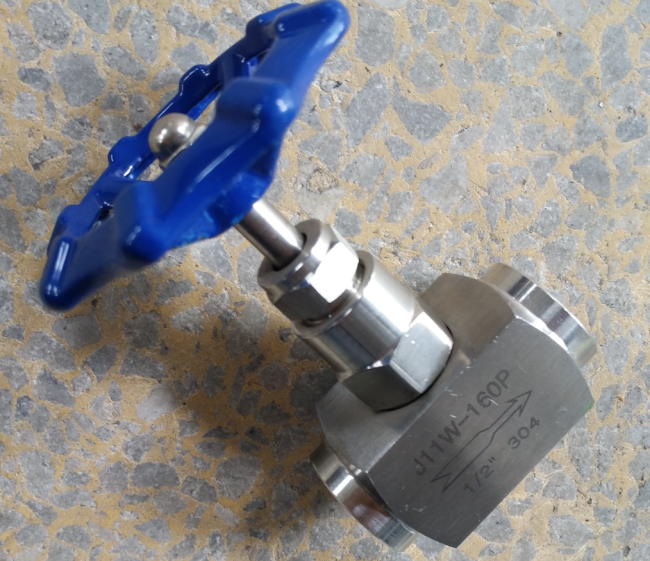

Needle valve,precise steam controlling.
Rigid tubes under water collection tray , looks simple and beautiful.
3. Parameters
| Item Models | HF-1200M | HF-1500M | HF-2000M | HF-2300M |
| Length of tunnel | 1.2meters | 1.5meters | 2.0meters | 2.3meters |
| Blower powder | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW |
| Powder supply of blower | 220V 3P 60Hz or 220V 1P 50Hz | |||
| Entrance /exit height | Max 350mm | |||
| Entrance /exit width | 130~210mm (fixed size once confirmed) | |||
| Running pressure | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa |
| Weight | 180kg | 200Kg | 220kg | 230kg |
| Steam consumption | 18kg/h | 21kg/h | 24kg/h | 24kg/h |
| Conveyor speed | 0~35m/minute | 0~35m/minute | 0~35m/minute | 0~35m/minute |
| Outline size (m) | L1.2*W0.4*H1.5 | L1.5*W0.4*H1.5 | L2.0*W0.4*H1.5 | L2.3*W0.4*H1.5 |
Packing details :
|
box size |
2.1*1*1.65m |
|
gross weight
|
300kgs |
