Traction Tread Aluminum Grip Strut Grating With Round Hole For Platforms Walkway

>>>specification To The Traction Tread Aluminum Grip Strut Grating

material	thickness	width	A	B	C	button rows
preogalvanized steel	13ga,11ga	12" 10"  7"	11-7/8" 9-7/8" 6-7/8"	15/16  7/8 15/16	16 13  8	17 14  9
5052 aluminum	0.125"	12"           10"            7"	11-7/8" 9-7/8" 6-7/8"	15/16  7/8 15/16	16 13 8	17 14  9

note: Grip Strut Grating material: galvanized steel , 5052 aluminum sheet. we can be according your requirements to decide

          the length and width and deep.

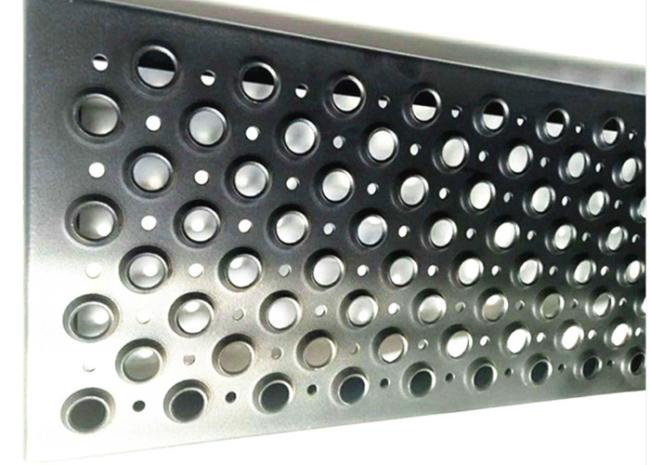

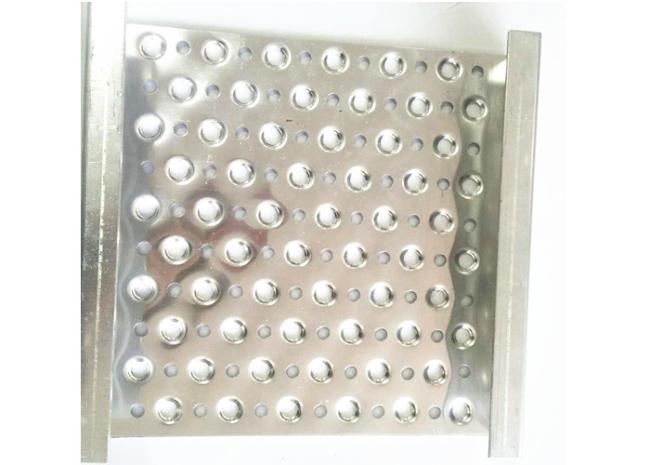

images of Traction Tread Aluminum Grip Strut Grating

>>> Application Of The Traction Tread Aluminum Grip Strut Grating

TRACTION TREAD is easily adapted for a multitude of applications, offering a safe walking-working surface for walkways,

ramps, stair treads and equipment platforms. TRACTION TREAD is ideal for the manufacture of specialty and fabricated

products, and is often used as a reconditioning material over existing surfaces that do not provide slip-resistance.

installation of the Traction Tread Aluminum Grip Strut Grating
