10A Current Rating SMT Current Sense Transformer PH9500.065NL, PH9500.100NL

Top features of the 10A Current Rating SMT Current Sense Transformer PH9500.065NL, PH9500.100NL

1. RoHS compliant
2. Isolation to 4.4KVDC
3. Height: 8.8mm Max
4. Toroidal construction
5. UL94 V-0 package materials
6. Low-profile surface mount
7. Industrial temperature range
8. Current Rating up to 10A
9. Competitive than other brands

Specification of the 10A Current Rating SMT Current Sense Transformer PH9500.065NL, PH9500.100NL

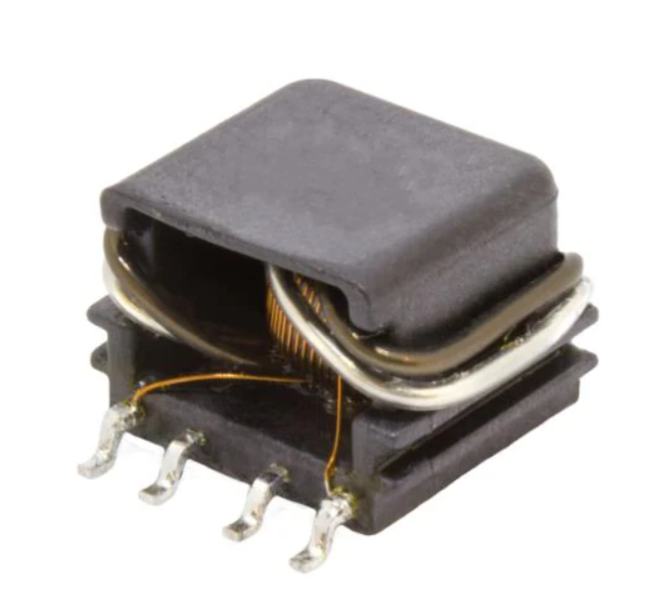

Product photo:

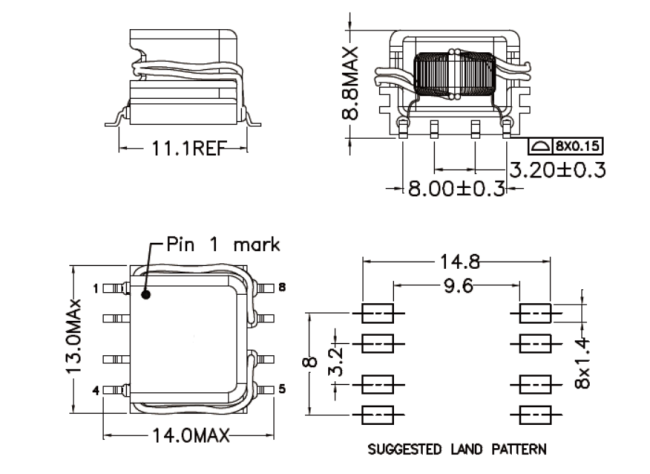

Dimensions of the 10A Current Rating SMT Current Sense Transformer PH9500.065NL, PH9500.100NL

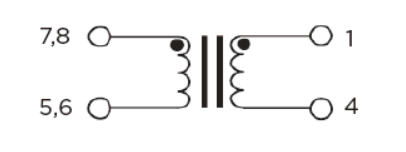

Schematic:

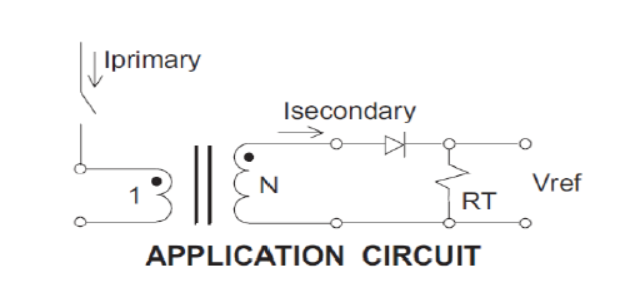

The typical application circuit of the 10A Current Rating SMT Current Sense Transformer PH9500.065NL, PH9500.100NL
