Electronic Pin-Typ Double Wound Transformer PA1135NL Vertical Mounted
PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer
Feature:
- Power Range: up to 30W
- Height: 11.45mm Max
- Footprint: 15.24mm x 13.1mm Max
- Toplogy: Forward and Flyback
PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer
| Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C | |||
| Product name | Pri. Inductance | (3-4) | 253.4 μH ±10% |
| PA1253NL | Lk. Inductance | (3-4) with (8, 7, 6, 5) shorted |
12 μH MAX |
| DCR | (3-4) | 420 mΩ MAX | |
| (2-1) | 335 mΩ MAX | ||
| (5-6) | 9.5 mΩ MAX | ||
| (7-8) | 7.2 mΩ MAX | ||
| Hi-Pot | Pri-Sec | 1500Vrms | |
| K1 Factor | 4671.8 | ||
| PA1277NL | Pri. Inductance | (3-4) | 20.4μH ±10% |
| Lk. Inductance | (3-4) with (10, 9, 8, 7) shorted |
1.5 μH MAX | |
| DCR | (3-4) | 80 mΩ MAX | |
| (6, 5-8, 7) | 7.5 mΩ MAX | ||
| (2-1) | 150 mΩ MAX | ||
| Hi-Pot | Pri-Sec | 1500Vrms | |
| K1 Factor | 1002.9 | ||
| PA1282NL | Pri. Inductance | (3-4) | 155 μH ±10% |
| Lk. Inductance | (3-4) with (8, 7, 6, 5) shorted |
5 μH MAX | |
| DCR | (3-4) | 530 mΩ MAX | |
| (6, 5-8, 7) | 31 mΩ MAX | ||
| (2-1) | 900 mΩ MAX | ||
| Hi-Pot | Pri-Sec | 1500Vrms | |
| K1 Factor | 3117.5 | ||
| PA1283NL | Pri. Inductance | (3-4) | 155 μH ±10% |
| Lk. Inductance | (3-4) with (8, 7, 6, 5) shorted |
5 μH MAX | |
| DCR | (3-4) | 570 mΩ MAX | |
| (6, 5-8, 7) | 40 mΩ MAX | ||
| (2-1) | 1000 mΩ MAX | ||
| Hi-Pot | Pri-Sec | 1500 Vrms | |
| K1 Factor | 3117.5 | ||
PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer
Shape and Dimensions:

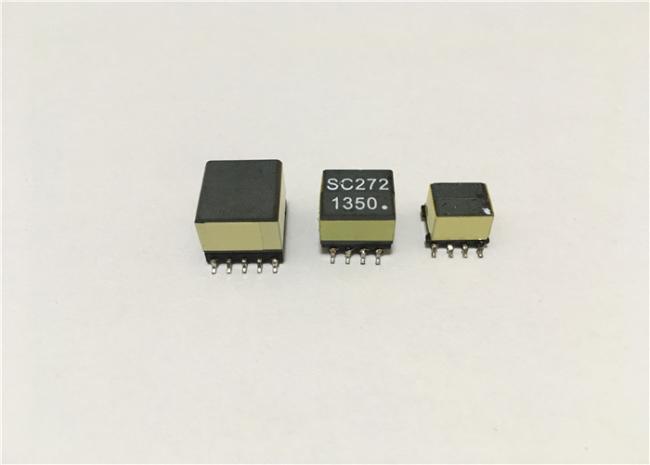

Product Picture:
PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer
