SMPS Small Signal Transformer , PA2363NL EP10 Wire Wound Transformer
PA2363NL SMPS Small Signal Transformer Wire Wound Transformers
Feature:
- Power Range: up to 30W
- Height: 11.45mm Max
- Footprint: 15.24mm x 13.1mm Max
- Toplogy: Forward and Flyback
PA2363NL SMPS Small Signal Transformer Wire Wound Transformers
| Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C | |||
| Product name | Pri. Inductance | (3-4) | 25.2 μH ±10% |
| PA2363NL | Lk. Inductance | (3-4) with (8, 7, 6, 5) shorted |
0.85 μH MAX |
| DCR | (3-4) | 135 mΩ MAX | |
| (2-1) | 9 mΩ MAX | ||
| (5-6) | 180 mΩ MAX | ||
| (7-8) | 1500Vrms | ||
| Hi-Pot | Pri-Sec | ||
| K1 Factor | 1115.0 | ||
| PA2364NL | Pri. Inductance | (3-4) | 25.2 μH ±10% |
| Lk. Inductance | (3-4) with (10, 9, 8, 7) shorted |
1 μH MAX | |
| DCR | (3-4) | 145 mΩ MAX | |
| (6, 5-8, 7) | 7.5 mΩ MAX | ||
| (2-1) | 110 mΩ MAX | ||
| Hi-Pot | Pri-Sec | 1500Vrms | |
| K1 Factor | 1059.4 | ||
| PA2454NL | Pri. Inductance | (3-4) | 24μH ±10% |
| Lk. Inductance | (3-4) with (8, 7, 6, 5) shorted |
0.75 μH MAX | |
| DCR | (3-4) | 82 mΩ MAX | |
| (6, 5-8, 7) | 13 mΩ MAX | ||
| (2-1) | 80 mΩ MAX | ||
| Hi-Pot | Pri-Sec | 1500Vrms | |
| K1 Factor | 1179.9 | ||
| PA2455NL | Pri. Inductance | (3-4) | 24μH ±10% |
| Lk. Inductance | (1-4) with (8, 7, 6, 5) shorted |
0.6 μH MAX | |
| DCR | (3-4) | 90 mΩ MAX | |
| (6, 5-8, 7) | 23 mΩ MAX | ||
| (2-1) | 130 mΩ MAX | ||
| Hi-Pot | Pri-Sec | 1500 Vrms | |
| K1 Factor | 1179.9 | ||
PA2363NL SMPS Small Signal Transformer Wire Wound Transformers
Shape and Dimensions:

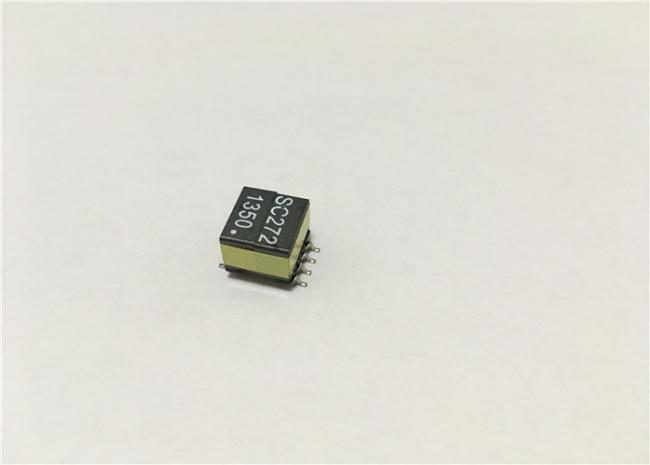

Product Picture:
PA2363NL SMPS Small Signal Transformer Wire Wound Transformers
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
