EP13 10 Pin Transformer PA3856.004NL 17.65*14.5*14.0mm With RoHS Certification
PA3856.004NL EP13 Type Small Signal Transformer With RoHS Certification
Feature:
- Industry standard footprint, 30% more power handling
- Power Range: Up to 70W
- Height: 14.0mm Max
- Footprint: 17.7mm x 14.5mm Max
- Topology: Forward and Flyback
| Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C | |||
| Product name | Pri. Inductance | (1-3) | 54uH +/- 10% |
| PA3855.001NL | Lk. Inductance | (1-3) w/ (10,9,6,7,4,5) shorted |
0.67uH Max |
| DCR | (1-3) | 62 mΩ Max | |
| (9-6) | 6.5 mΩ Max | ||
| (10-7) | 6.5 mΩ Max | ||
| (4-5) | 120 mΩ Max | ||
| Hi-Pot | Pri-Sec | 2250 Vdc | |
| K1 Factor | 1125.0 | ||
| PA3855.002NL | Pri. Inductance | (1-3) | 48uH +/- 10% |
| Lk. Inductance | (1-3) w/ (10,9,6,7,4,5) shorted |
0.67uH Max | |
| DCR | (1-3) | 62 mΩ MAX | |
| (9-6) | 10 mΩ MAX | ||
| (10-7) | 10 mΩ MAX | ||
| (4-5) | 120 mΩ MAX | ||
| Hi-Pot | Pri-Sec | 2250 Vdc | |
| K1 Factor | 1000.0 | ||
| PA2454NL | Pri. Inductance | (3-4) | 41uH +/- 10% |
| Lk. Inductance | (1-3) w/ (10,9,6,7,4,5) shorted |
0.67uH Max | |
| DCR | (1-3) | 62 mΩ MAX | |
| (9-6) | 20 mΩ MAX | ||
| (10-7) | 23 mΩ MAX | ||
| (4-5) | 120 mΩ MAX | ||
| Hi-Pot | Pri-Sec | 2250 Vdc | |
| K1 Factor | 2250 Vdc | ||
| PA2455NL | K1 Factor | 538.5 | |
PA3856.004NL EP13 Type Small Signal Transformer With RoHS Certification
Shape and Dimensions:

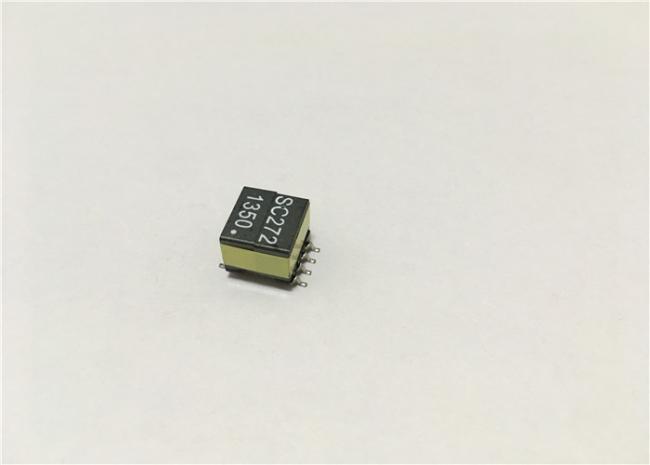

Product Picture:
PA3856.004NL EP13 Type Small Signal Transformer With RoHS Certification
