Ferrite Inverter Small Signal Transformer EE / EI / EP / EF 0.1-2.5 Watt
EE/EI/EP/EF Ferrite Inverter Small Signal Transformer
ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:
| PARAMETER | TEST CONDITIONS | VALUE |
| D.C. RESISTANCE 1-5 | @20°C | 0.025 ohms max |
| D.C. RESISTANCE 10-8 | @20°C | 0.058 ohms max |
| D.C. RESISTANCE 8-6 | @20°C | 0.080 ohms max |
| INDUCTANCE 1-5 | 100KHz,10mVAC,Ls | 100.00uH min. |
| DIELECTRIC 1-10 | 1875vac,1 second | 1500VAC,1 minute |
| DIELECTRIC 10-Core | 1875vac,1 second | 1500VAC,1 minute |
| DIELECTRIC 1-Core | 625vac,1 second | 500Vrms, 1 minute |
| TURNS RATIO | (10-8):(1-3) | 3:1±2% |
| TURNS RATIO | (8-6):(1-3) | 3:1±2% |
GENERAL SPECIFICATIONS:
- OPERATING TEMPERATURE RANGE: -40°C TO +125°C .

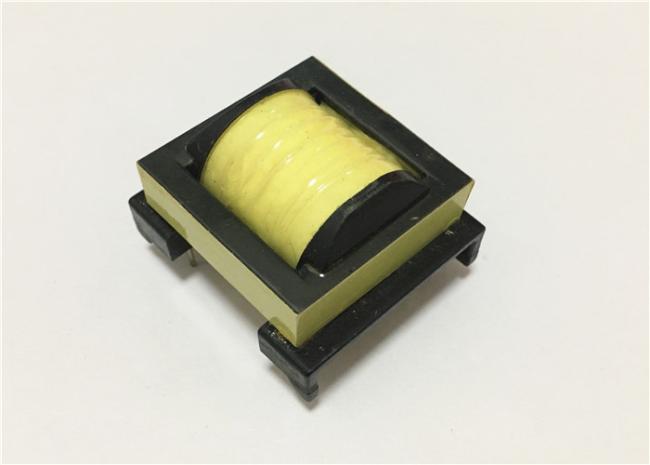

Product Picture:
EE/EI/EP/EF Ferrite Inverter Small Signal Transformer
