11.00*15.24*12.7mm 7 Watt POE70P-33L_ SMPS Flyback Transformer
11.00*15.24*12.7mm 7 Watt POE70P-33L_ SMPS Flyback Transformer
Feature:
Core material Ferrite
Terminations RoHS tin-silver over tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight POE13P: 6.15 g; POE70P: 3.85 g; POE30P: 2.05 g
Ambient temperature –40°C to +85°C
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
|
Part number |
Power (W) |
Inductance at 0 A ±10% (μH) |
Inductance at Ipk min (μH) |
DCR max (Ohms) |
Leakage inductance max (μH) |
Turns ratio |
Ipk (A) |
Output | |||
| pri | bias | sec | pri : sec | pri : bias | |||||||
| POE70P-33L_ | 7 | 155 | 139.5 | 0.414 | 0.822 | 0.036 | 4.00 | 1 : 0.19 | 1 : 0.667 | 0.65 | 3.3 V, 2.12 A |
| POE70P-50L_ | 7 | 155 | 139.5 | 0.414 | 0.822 | 0.060 | 3.60 | 1 : 0.262 | 1 : 0.667 | 0.65 | 5.0 V, 1.4 A |
| POE70P-12L_ | 7 | 155 | 139.5 | 0.414 | 0.822 | 0.343 | 3.25 | 1 : 0.667 | 1 : 0.667 | 0.65 | 12 V, 0.6 A |
Similar Products
| POE70P-33L_ | POE70P-50L_ | POE70P-12L_ |
11.00*15.24*12.7mm 7 Watt POE70P-33L_ SMPS Flyback Transformer

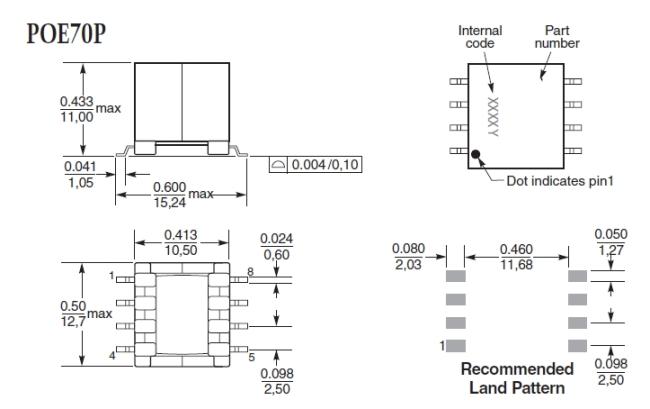

Shape and Dimensions:

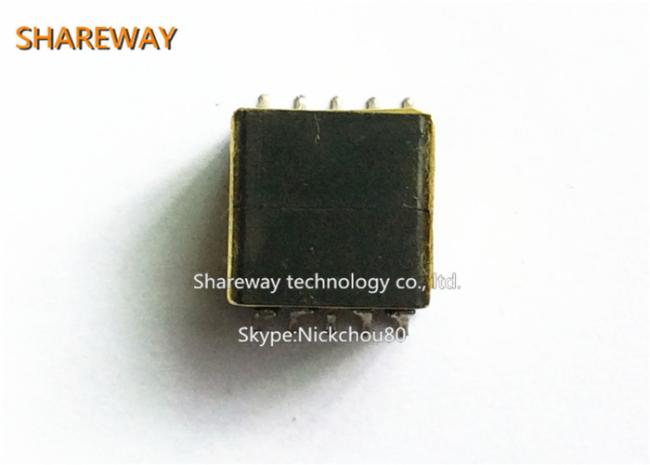

Product picture:
