17.2*17.6*8.64mm C0984-CL_ Power Transformer used in power supplies
Price:
Supportive
MOQ:
100/500/1000
Delivery Time:
Stock or 3 weeks
Brand:
Shareway
Product Description
17.2*17.6*8.64mm C0984-CL_ Power Transformer used in power supplies
- Power Transformer For Maxim MAX5074Isol ated PWM Power IC
- The C0984-CL transformer is designed specifically for the Maxim MAX5074 isolated PWM power IC in a forward DCDC converter. It can be used in power supplies for IEEE 802.3af-compliant PoE applications, IP phones, WLAN Access-Points and a variety of other telecom applications with an input voltage range from 36 V to 72 V.
- This transformer features very low secondary winding DCR and 1500 Vrms isolation from the primary and bias windings to the secondary.
|
Part number |
Power |
Inductance min (μH) |
DCR max (Ohms) |
Leakage inductance max (μH) |
Turns ratio | Output | |||
| pri | sec | bias | pri : sec | pri : bias | |||||
| C0984-CL_ | 18 W | 395 | 0.127 | 0.065 | 0.875 | 1.75 | 1 : 0.88 | 1 : 0.44 |
12 V, 1.5 A (sec) 14 V, 0.03 A (bias) |
1. Inductance is for the primary, measured at 10 kHz, 0.1 Vrms, 0 Adc.
2. Leakage inductance is for the primary winding with the other windings shorted.
3. Operating temperature range –40°C to +125°C.
4. Electrical specifications at 25°C.
17.2*17.6*8.64mm C0984-CL_ Power Transformer used in power supplies

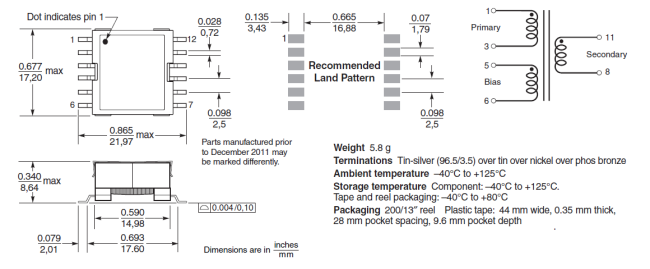

Shape and Dimensions:
