HA3801-BL_ SMPS Flyback Transformer For Converter Controller
HA3801-BL_ SMPS Flyback Transformer For Converter Controller
Description:
• Windings optimized for hiccup overload protection
• 1500 Vrms, one minute isolation primary and bias to secondary windings
Core material Ferrite
Terminations RoHS tin-silver (96.5/3.5) over tin over nickel over
phos bronze. Other terminations available at additional cost.
Weight 5.0 – 5.3 g
Ambient temperature –40°C to +125°C
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
|
Part number |
L at 0 A ±10% (μH) |
L at Ipk min (μH) |
DCR max (Ohms) |
Leakage L max (μH) |
Turns ratio |
Ipk (A) |
Output |
Drive output |
||||||
| pri | sec | drive | bias | pri | drive | pri : sec | pri : drive | pri : bias | ||||||
| HA3801-BL_ | 166.5 | 150.0 | 0.735 | 0.0270 | 0.510 | 1.05 | 2.50 | 0.41 | 1 : 0.154 | 1 : 0.27 | 1: 0.50 | 1.2 | 3.3 V, 3 A | 5.6 V, 10 mA |
| HA3802-BL_ | 150.0 | 135.0 | 0.520 | 0.0275 | 0.560 | 0.88 | 1.90 | 0.40 | 1 : 0.25 | 1 : 0.31 | 1: 0.44 | 1.2 | 5 V, 2 A | 7.5 V, 10 mA |
| HA3803-BL_ | 166.5 | 150.0 | 0.760 | 0.103 | 0.475 | 1.10 | 1.80 | 0.25 | 1 : 0.50 | 1 : 0.25 | 1: 0.50 | 1.2 | 12 V, 0.83 A | 6.0 V, 10 mA |
HA3801-BL_ SMPS Flyback Transformer For Converter Controller

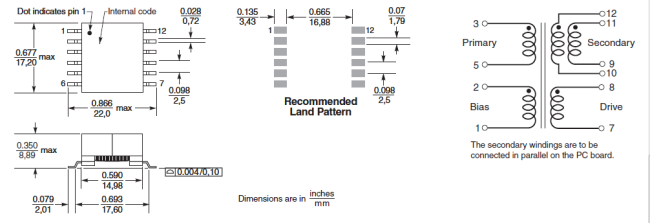

Shape and Dimensions:

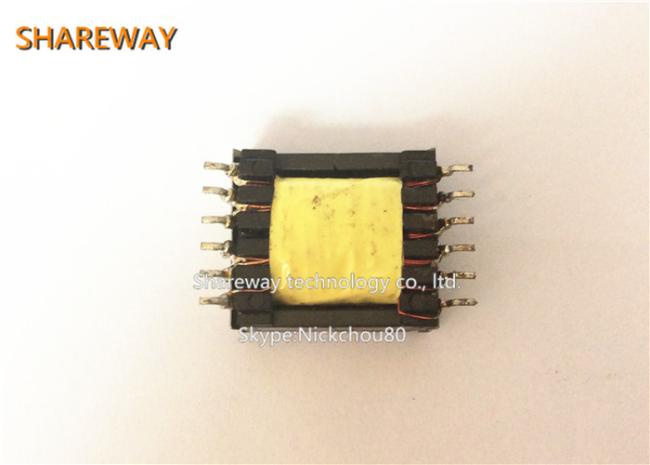

Product picture:
