13.46*12.7*17.75mm SMPS Flyback Transformer 6.2 g Weight PA6340-AL_
13.46*12.7*17.75mm 6.2 g Weight PA6340-AL_ Flyback Transformer
Description:
• Flyback transformer for 10 W PoE applications
• Developed to work with TI TPS23753A PoE controller
• 1500 Vrms isolation (hipot), one minute from primary and bias to secondary and sync
Core material Ferrite
Terminations RoHS tin-silver (96.5/3.5) over tin over nickel over phos
bronze.
Weight 6.2 g
Ambient temperature –40°C to +85°C
Maximum part temperature +125°C (ambient + temp rise)
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
|
Part number |
L at 0 A ±7% (μH) |
L at Ipk min (μH) |
DCR max (Ohms) |
Leakage inductance max (μH) |
Capacitance max (pF) |
Turns ratio | Output | |||||
| pri | sec | bias | sync | pri : sec : bias : sync | ||||||||
| PA6340-AL_ | 133.0 | 123.7 | 0.330 | 0.0135 | 0.230 | 0.190 | 1.50 | 70 | 1 : 0.167 : 0.361 : 0.167 | 5.0 V, 2.0 A | ||
13.46*12.7*17.75mm 6.2 g Weight PA6340-AL_ Flyback Transformer

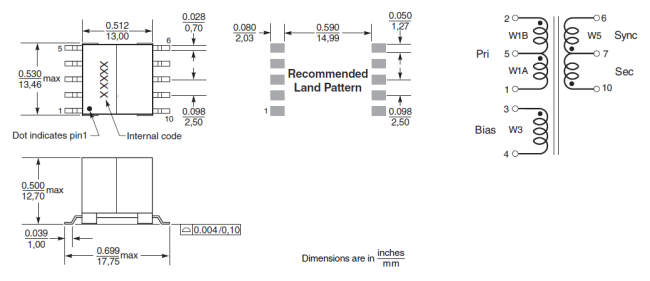

Shape and Dimensions:

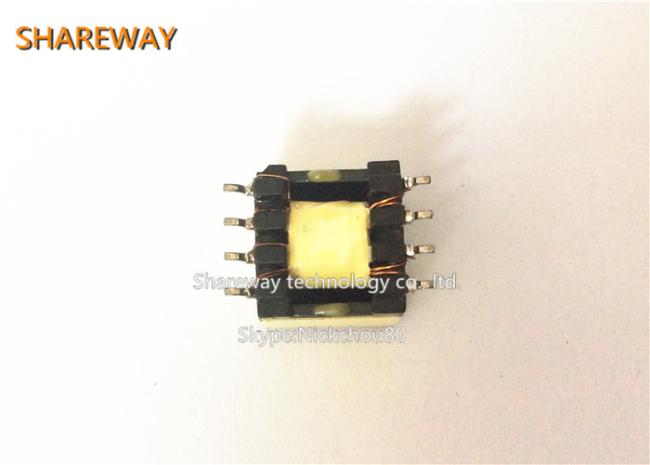

Product picture:
