6.2 g 5+5p in Flyback Transformer PA6284-AL_ for offline LED drive
6.2 g 5+5pin Flyback Transformer PA6284-AL_ for offline LED drive
Description:
• Developed for STMicroelectronics STEVAL-ILL055V1 offline
LED drive
• Input voltage: 185 – 264 Vac
• 1500 Vrms, one minute isolation from the primary and aux
windings to the secondary winding
Core material Ferrite
Terminations RoHS tin-silver over tin over nickel over phos bronze.
Weight 6.2 g
Ambient temperature –40°C to +85°C
Maximum part temperature +125°C (ambient + temp rise)
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
|
Part number |
Power (W) |
Inductance at 0 A ±10% (mH) |
DCR max (Ohms) |
Leakage L max (μH) |
Turns ratio | Output | ||||||
| pri | sec | aux | pri : sec | pri : bias | ||||||||
| PA6284-AL_ | 11 | 1.40 |
3.03 |
0.085 | 0.57 | 25 | 1 : 0.136 | 1 : 0.144 | 12 – 18 V, 0.64 A | |||
6.2 g 5+5pin Flyback Transformer PA6284-AL_ for offline LED drive

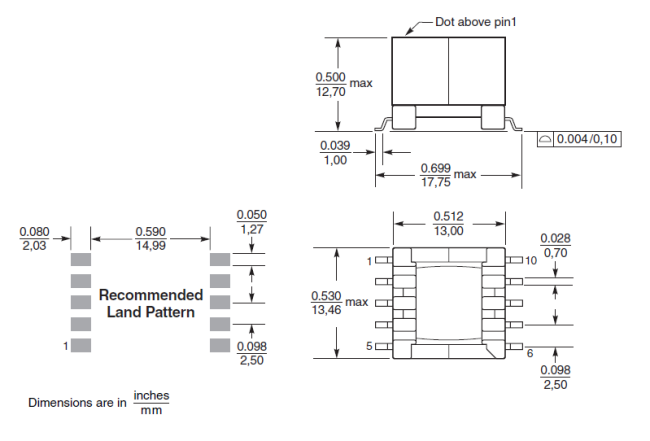

Shape and Dimensions:

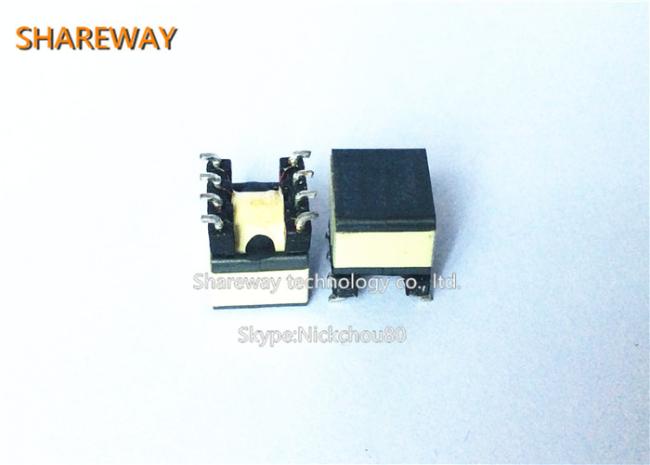

Product picture:
