17.20*22.0*8.2mm HP3-0950L_ / HPH3-0950L_ buck / boost Transformer
Price:
Supportive
MOQ:
100/500/1000
Delivery Time:
Stock or 3 weeks
Brand:
Shareway
Product Description
17.20*22.0*8.2mm HP3-0950L_ / HPH3-0950L_ buck / boost Transformer
Description:
There are six different sizes available
with five HP parts and five HPH parts
in each size. The HP offers lower DCR
and higher Irms ratings.
|
Part number |
Inductance (μH) |
DCR max (Ohms) |
Volt-time product (V-μsec) |
Peak energy storage (μJ) |
Isat (A) |
Irms (A) |
| HP3-0950L_ | 77.0 ±25% | 0.055 | 30.4 | Note 8 | Note 8 | 1.73 |
| HP3-0138L_ | 11.2 ±20% | 0.055 | 30.4 | 59.6 | 0.650 | 1.73 |
| HP3-0084L_ | 6.8 ±15% | 0.055 | 30.4 | 111 | 1.14 | 1.73 |
| HP3-0055L_ | 4.5 ±10% | 0.055 | 30.4 | 156 | 1.66 | 1.73 |
| HP3-0047L_ | 3.8 ±5% | 0.055 | 30.4 | 173 | 1.90 | 1.73 |
| HPH3-0950L_ | 160 ±25% | 0.125 | 43.9 | Note 8 | Note 8 | 1.13 |
| HPH3-0138L_ | 23.6 ±20% | 0.125 | 43.9 | 52.5 | 0.420 | 1.13 |
| HPH3-0084L_ | 14.2 ±15% | 0.125 | 43.9 | 98.0 | 0.740 | 1.13 |
| HPH3-0055L_ | 9.3 ±10% | 0.125 | 43.9 | 169 | 1.20 | 1.13 |
| HPH3-0047L_ | 7.94 ±5% | 0.125 | 43.9 | 196 | 1.40 | 1.13 |
17.20*22.0*8.2mm HP3-0950L_ / HPH3-0950L_ buck / boost Transformer

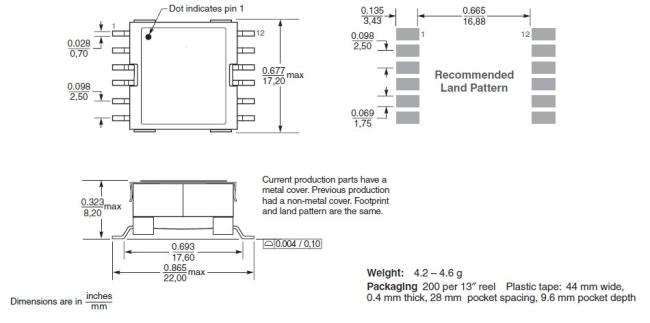

Shape and Dimensions:
