full and half bridge HP1-1400L_ / HPH1-1400L_ Flyback Transformer
Description:
• Six 1 : 1 isolated windings that can be
connected in series or parallel
• Tightly coupled windings
• 500 Vrms, one minute isolation
between each winding
• Power range: 5 – 50 Watts as inductor
and flyback transformer; up to
150 Watts as forward transformer
• Frequency range up to 1 MHz
|
Part number |
Inductance (μH) |
DCR max (Ohms) |
Volt-time product (V-μsec) |
Peak energy storage (μJ) |
Isat (A) |
Irms (A) |
| HP1-1400L_ | 89.6 ±25% | 0.145 | 23.4 | Note 8 | Note 8 | 0.74 |
| HP1-0190L_ | 12.2 ±20% | 0.145 | 23.4 | 29.8 | 0.440 | 0.74 |
| HP1-0102L_ | 6.5 ±15% | 0.145 | 23.4 | 55.1 | 0.820 | 0.74 |
| HP1-0076L_ | 4.9 ±10% | 0.145 | 23.4 | 74.7 | 1.10 | 0.74 |
| HP1-0059L_ | 3.8 ±5% | 0.145 | 23.4 | 93.8 | 1.40 | 0.74 |
| HPH1-1400L_ | 202 ±25% | 0.340 | 35.1 | Note 8 | Note 8 | 0.62 |
| HPH1-0190L_ | 27.4 ±20% | 0.340 | 35.1 | 31.1 | 0.300 | 0.62 |
| HPH1-0102L_ | 14.7 ±15% | 0.340 | 35.1 | 60.2 | 0.570 | 0.62 |
| HPH1-0076L_ | 10.9 ±10% | 0.340 | 35.1 | 99.2 | 0.850 | 0.62 |
| HPH1-0059L_ | 8.5 ±5% | 0.340 | 35.1 | 107 | 1.00 | 0.62 |
full and half bridge HP1-1400L_ / HPH1-1400L_ Flyback Transformer

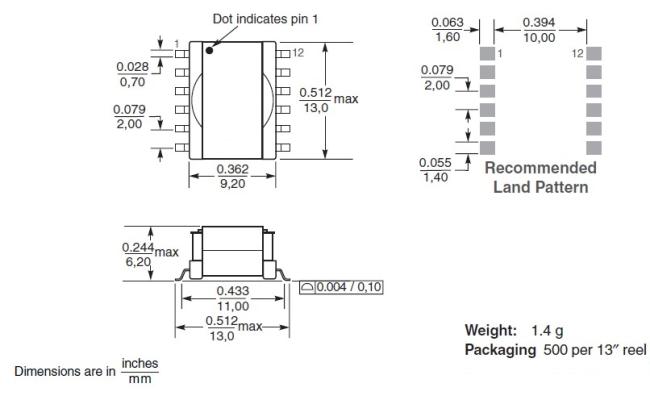

Shape and Dimensions:
