China 27.81*12.19*7.24mm 48pins 8 cores SMD Lan Transformer H5012NL for sale

27.81*12.19*7.24mm 48pins 8 cores SMD Lan Transformer H5012NL

Price Negotiable
Price: Supportive
MOQ: 100/500/1000
Delivery Time: Stock or 3 weeks
Brand: Shareway
Product Description

27.81*12.19*7.24mm 48pin 8 cores SMD Lan Transformer H5012NL

Description:

  • Ethernet Magnetic Transformers
  • Compliant with IEEE802.3ab Draft Standards for 1000 Base-T
  • Designed for Long Haul Gigabit Ethernet 10/100/1000 Base-T Full Duplex applications
  • Low profi le surface mount packaging designed for refl ow process (245 ° peak)



Inductance : 350 µH min

Turns Ratio : 1 CT:CT ±2 %

Operating Temperature : 0° C to 70 °C

Core number : 8 cores

Pin No. : 48 pins

Mounting : SMD / SMT

Size : 27.81*12.19*7.24mm

Samples: Free Offer

Isolation voltage: 1500v





27.81*12.19*7.24mm 48pin 8 cores SMD Lan Transformer H5012NL

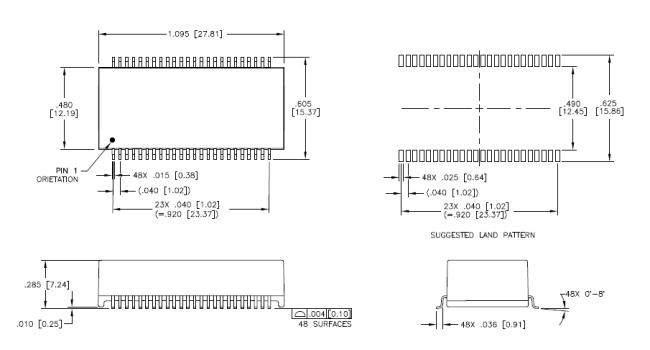

Shape and Dimensions:
