8 Pins SMPS Flyback Transformer , RM5 Core Thru - Hole High Frequency Transformer
Price:
Supportive
MOQ:
100/500/1000
Delivery Time:
Stock or 3 weeks
Brand:
Shareway
Product Description
8 Pins RM5 Core Thru-hole High Frequency transformer MOX-TRFH-1916
Description:
- OPERATING TEMPERATURE: -40°C TO +105°C.
- INSULATION CLASS: B (RATED TO +130°C).
- BOBBIN MATERIAL: HIGH TEMPERATURE PHENOLIC.
- CORE MATERIAL: RM5.
- WIRE MATERIAL: POLYURETHANE DD (2UEW).Polyurethane DD (2UEW)
- EXPOXY: 9001A/B.
- CLIP: RM5.
- Size: 20.5*17.5*23.5mm
- Pin: 4+4 Pins
| PART NUMBER | INDUCTANCE (L) |
TEST FREQUENCY |
DCR @ 25°C |
| MOX-TRFH-1916 | L: (1~4) = 2.40μH~2.8μH | 10KHz @ 0.02V | (1~4) TIE: 2.3 = 26mΩ MAX |
| L: (2~3) = 2.40μH~2.8μH | 10KHz @ 0.02V | (5~7) TIE: 6.8 = 32mΩ MAX | |
| L: (5~8) = 2.40μH~2.8μH | 10KHz @ 0.02V | ||
| L: (6~7) = 2.40μH~2.8μH | 10KHz @ 0.02V |
8 Pins RM5 Core Thru-hole High Frequency transformer MOX-TRFH-1916

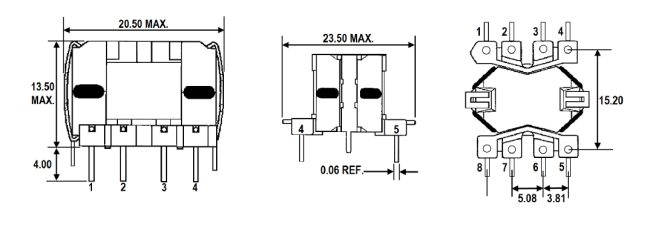

Shape and Dimensions:
