15.0*13.7*5.7mm 10G magnetic transformer HD8001NL / HD8003FNL / HD8004FNL

15.0*13.7*5.7mm 10G magnetic transformer HD8001NL / HD8003FNL / HD8004FNL

Key Features:

• Fully qualified to meet HDBaseT™ magnetics requirements
• Power over HDBaseT (PoH) of 60W (HD8004FNL) and 100W (HD8005FNL)
• 24-pin,72x14.99x5.72mm,SMT package
• RoHS and REACH Compliant
• Meets IEEE 802.3at standard
• Production released, parts are available in distribution
• Operating Temperature 0C to +70C
• Storage Temperature - 20C to +125C

PCB Layout Recommendations

• Keep signal traces from IC to magnetics module as short as possible.
• Avoid PCB traces with 90 -degree bends.
• Ensure that there is no contiguous ground plane underneath the module.
• Using BST (75Ω resistors and high voltage capacitor to chassis ground) to terminate cable side CTs is advisable for best EMI performance.

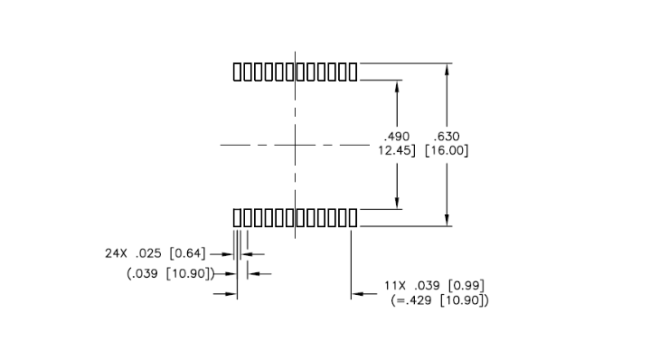

• Follow suggested land pattern as shown below: inch(mm).
